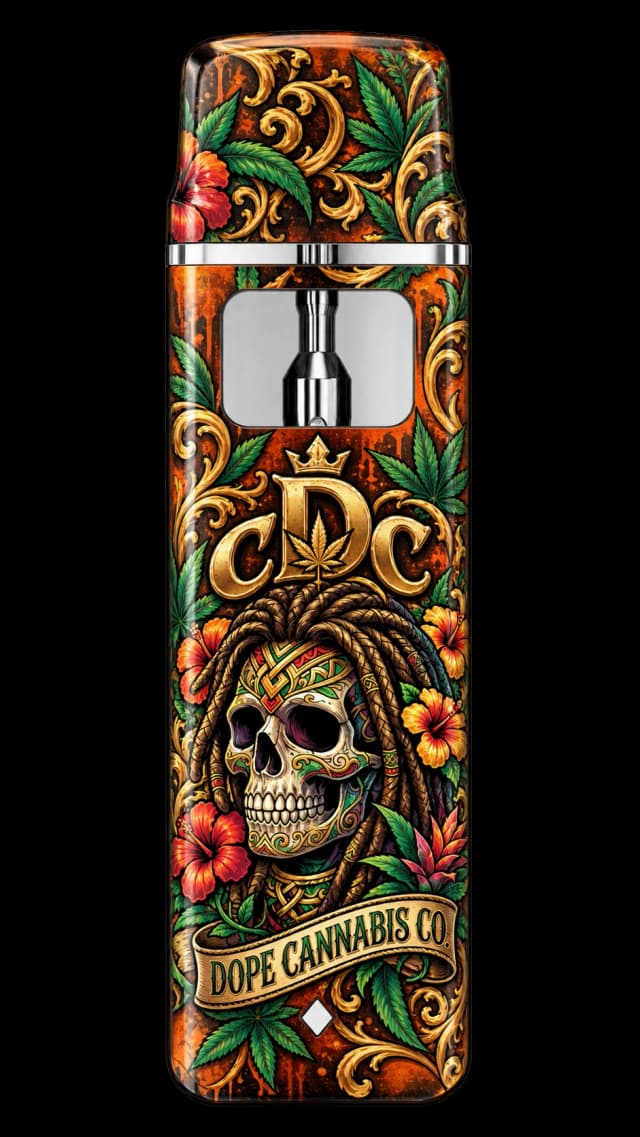

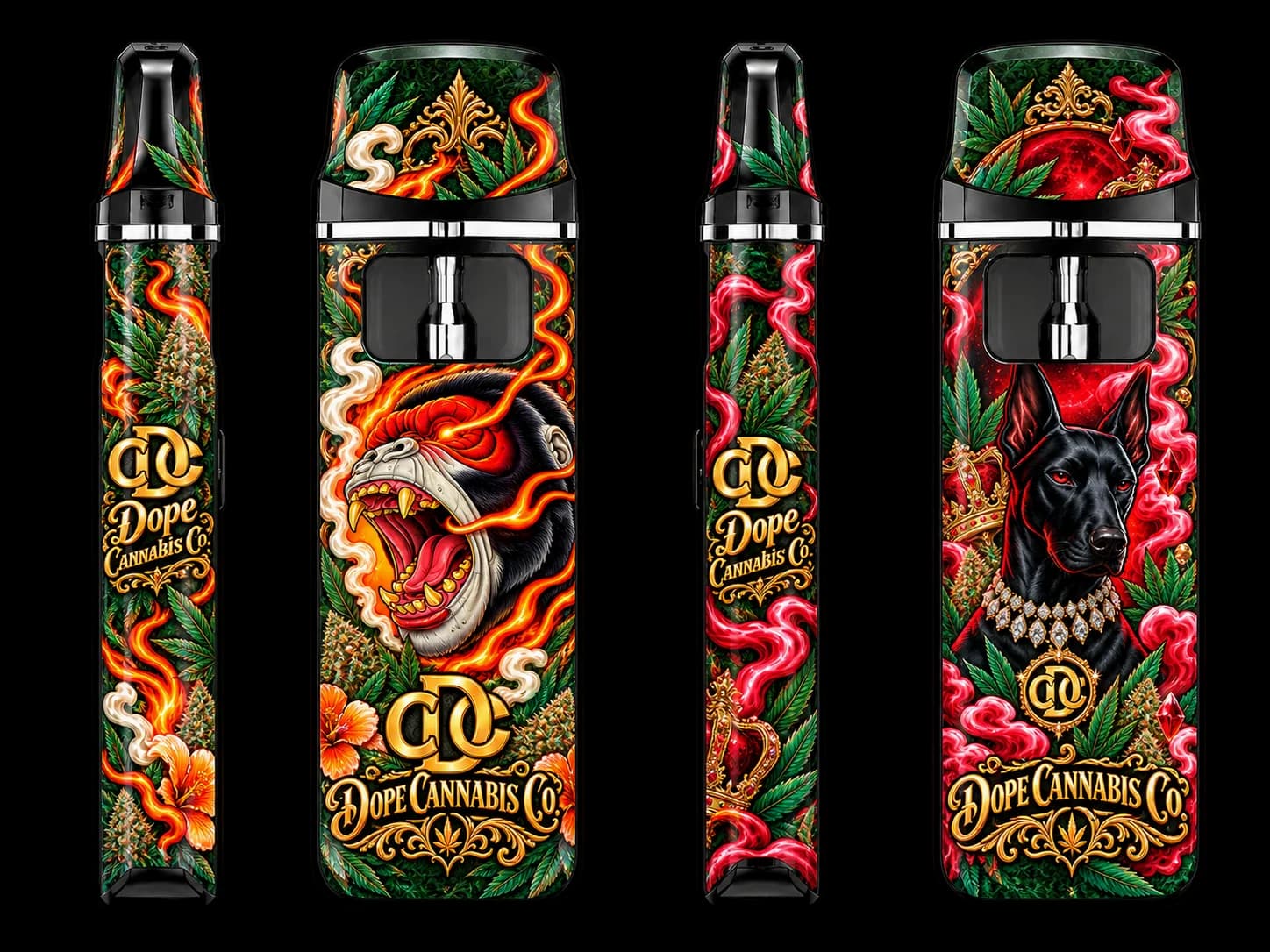

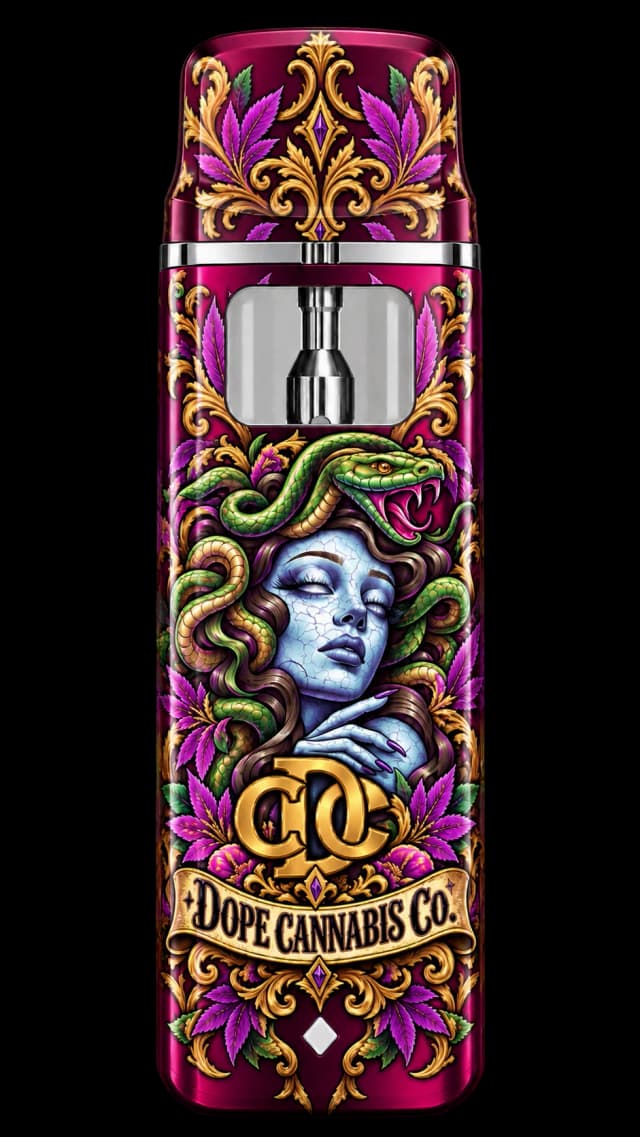

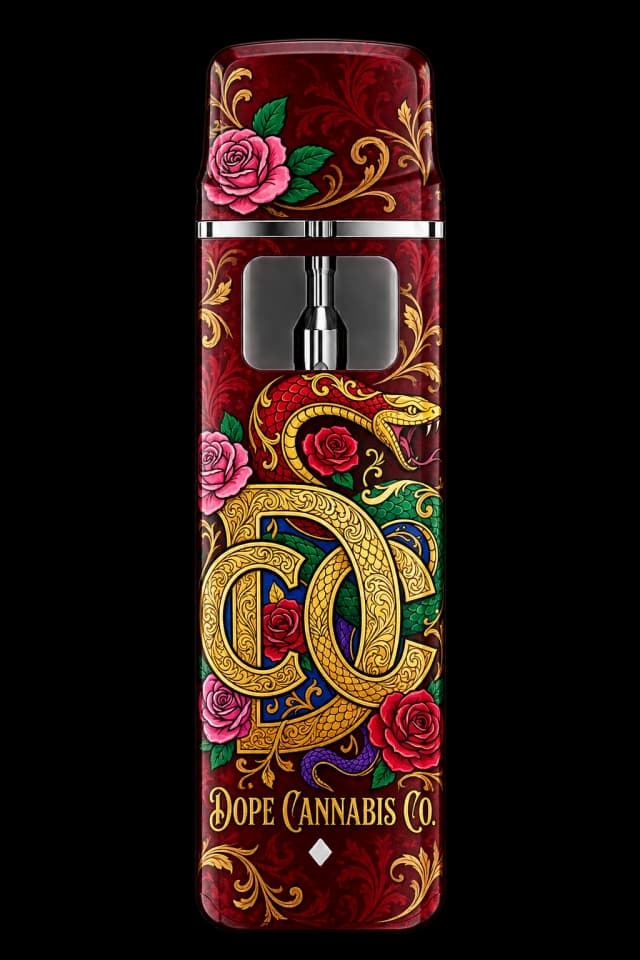

CASCADE A AIO
A screen display AIO available in 1.0mL, 1.5mL, and 2.0mL capacities, featuring an SS316 medical-standard post, inhale activation, 320mAh rechargeable battery, and USB-C charging.
Front, rear, and side profiles, finishes, tank window, SS316 post, mouthpiece, USB-C area, and dieline.
Complete specification data for procurement and compliance.
| Product Type | All In One |
|---|---|
| Version | 1.0mL / 1.5mL / 2.0mL |
| Max Fill Volume | 1.0mL / 1.5mL / 2.0mL |
| Internal Volume | 1.05mL / 1.55mL / 2.05mL |
| Dimension | 90 × 24 × 10.2mm |
| Standard Power | 3.5V |
White light stays on for 3 seconds when loading limits are exceeded. The device then enters dormancy.
Normal draw is 10 seconds. If exceeded, the light flashes twice and output stops.
Charging
USB-C · Light stays on while charging
Fully Charged
90mm H × 24mm W × 10.2mm D — shared across all three capacities.
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
-5°C to +35°C · 32°F–95°F
45–75% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

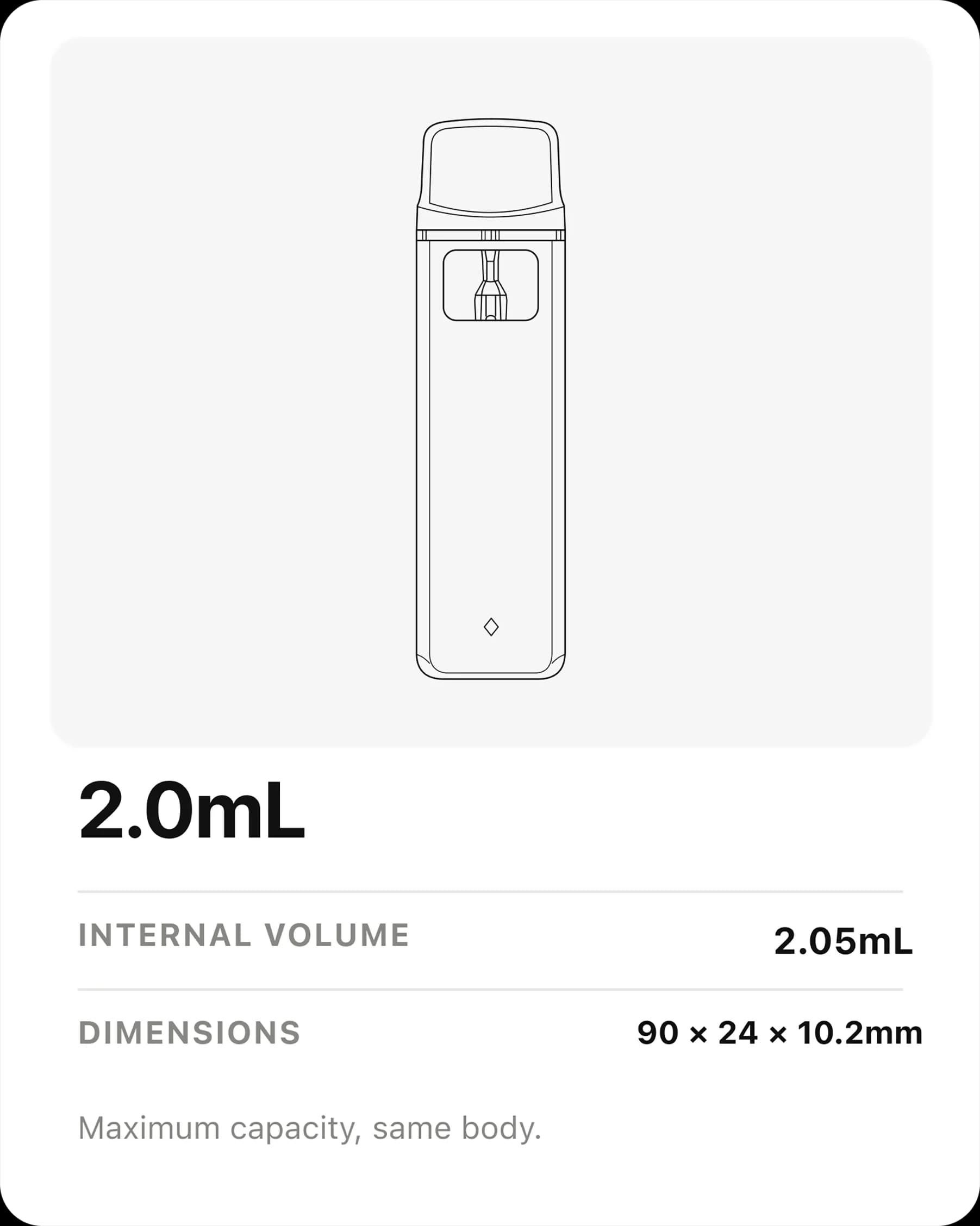

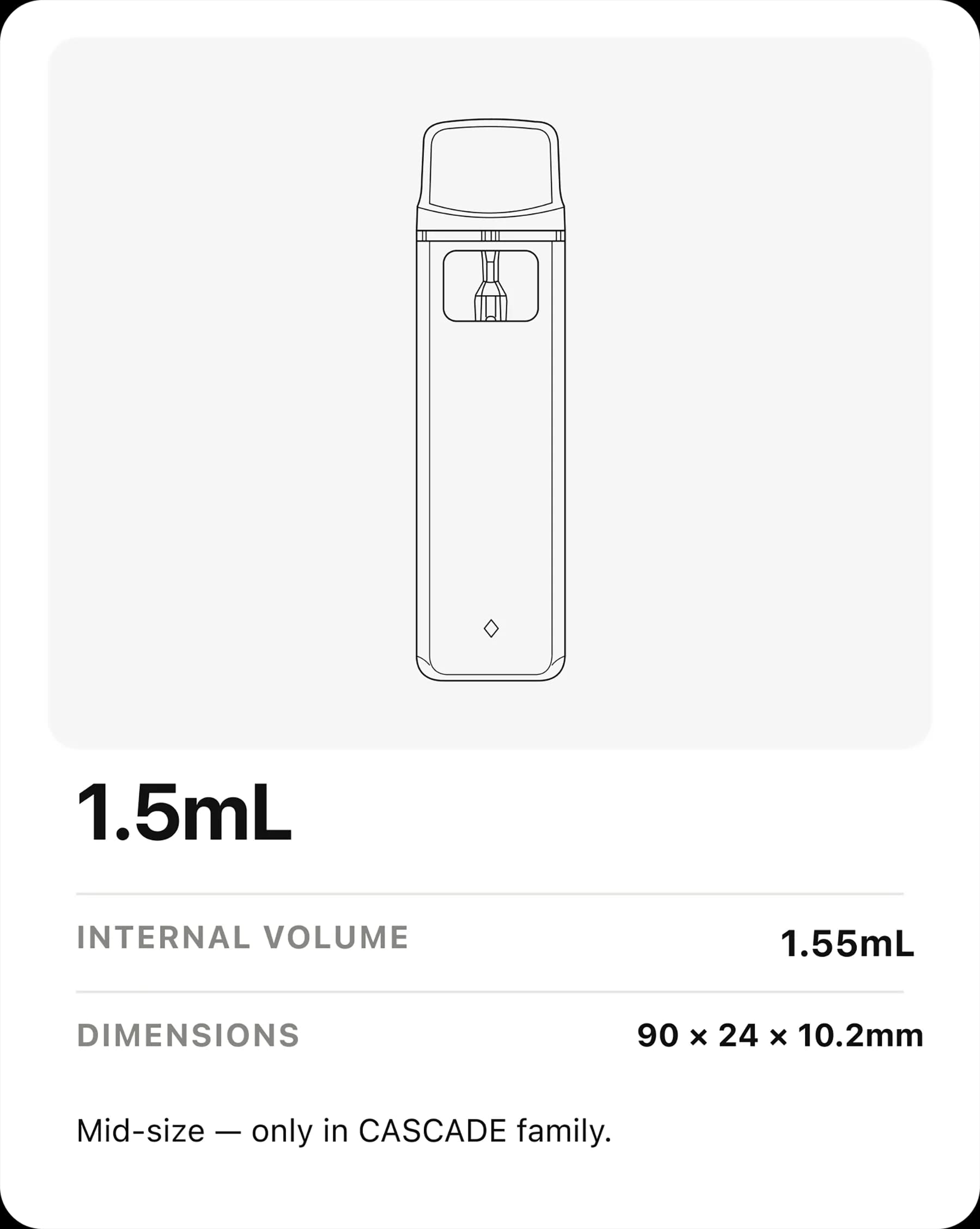

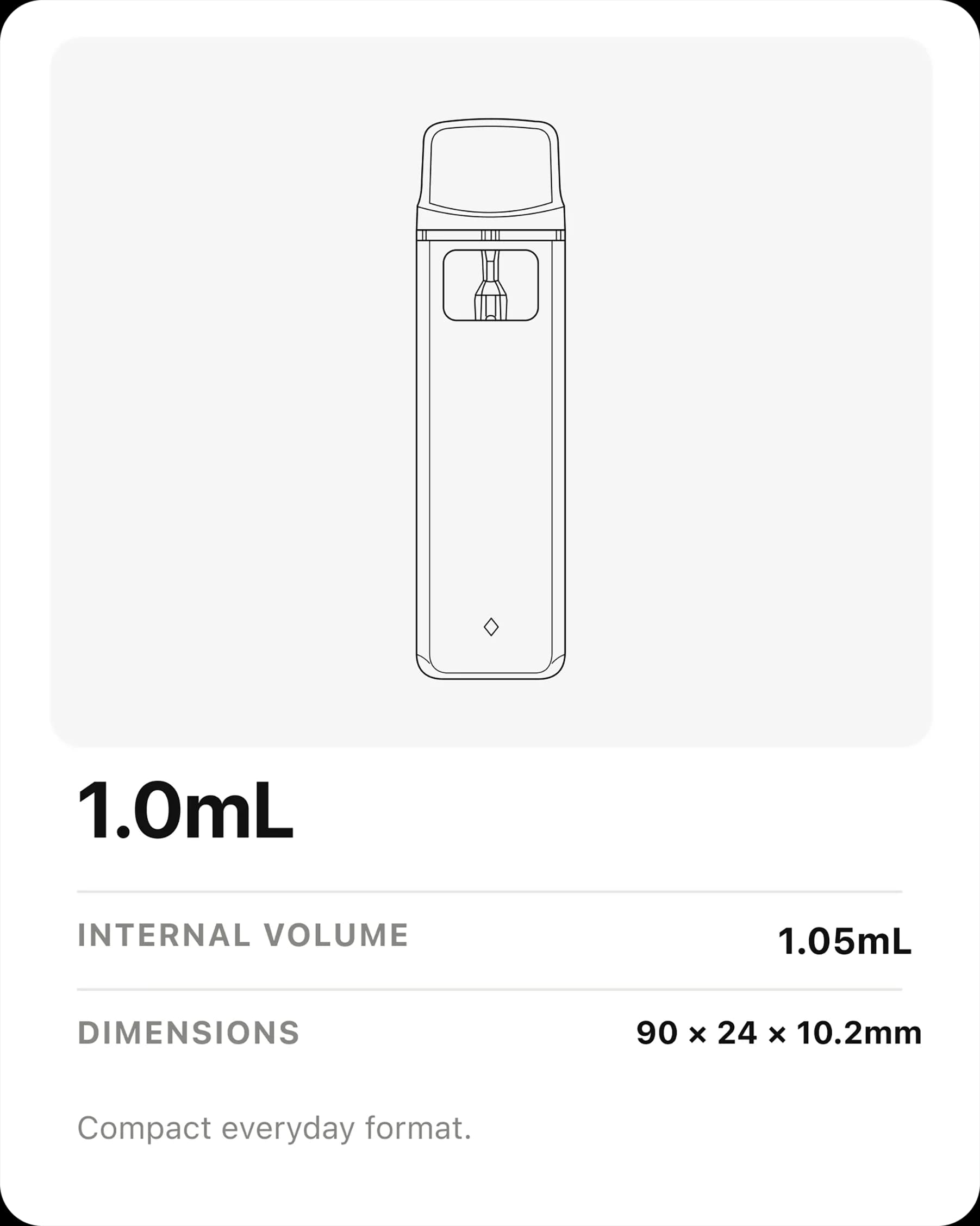

1.0mL (1.05mL internal), 1.5mL (1.55mL internal), and 2.0mL (2.05mL internal). All share the same 90 × 24 × 10.2mm body.
An SS316 medical-standard post — a medical-grade internal standard for consistent, compliant builds.
Same platform, body, battery, and SS316 post — CASCADE A runs a single 3.5V power setting while CASCADE V offers dual 2.8V / 3.5V settings.
4 × 1.8mm standard. Additional inlet options available upon request.

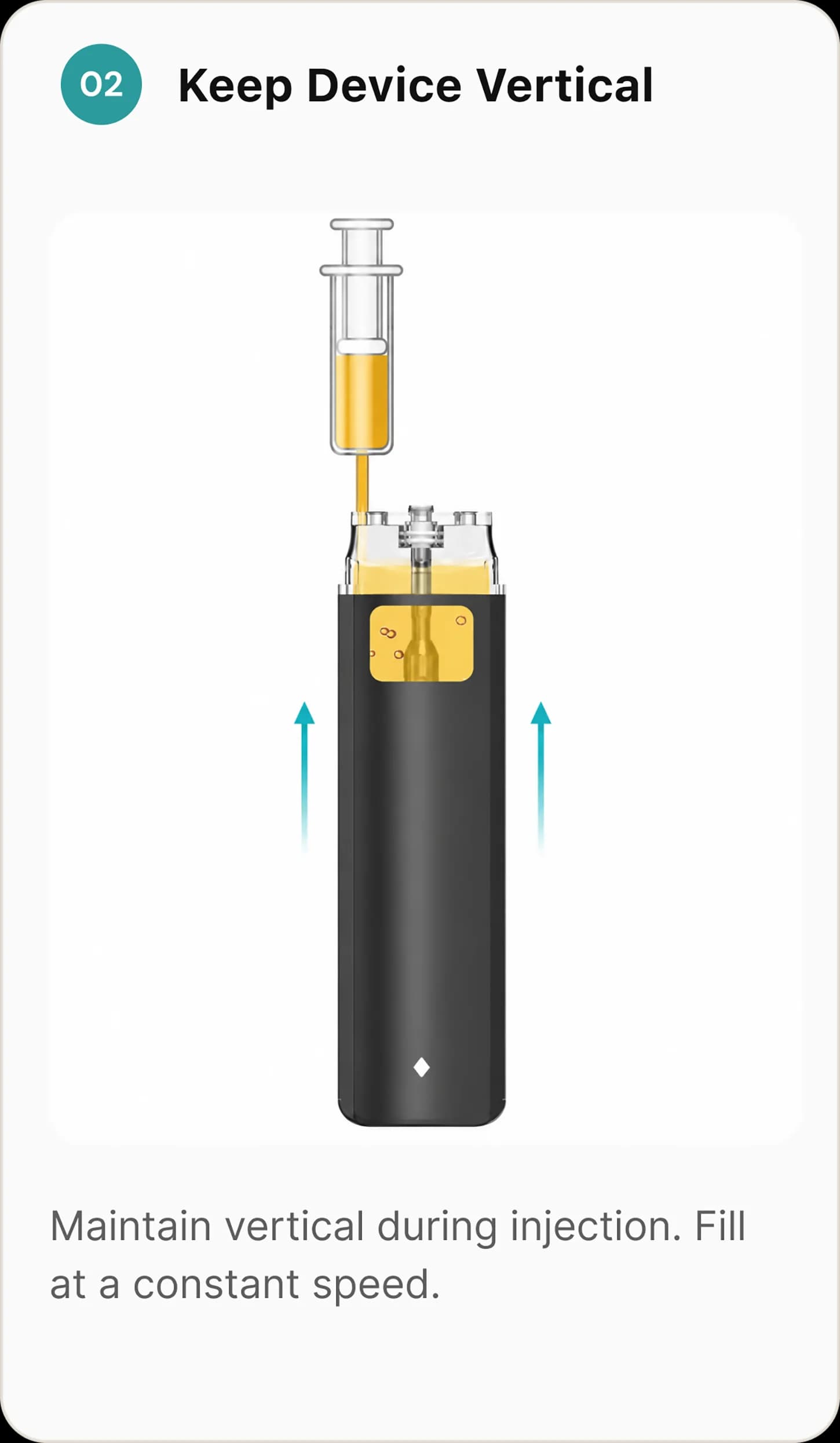

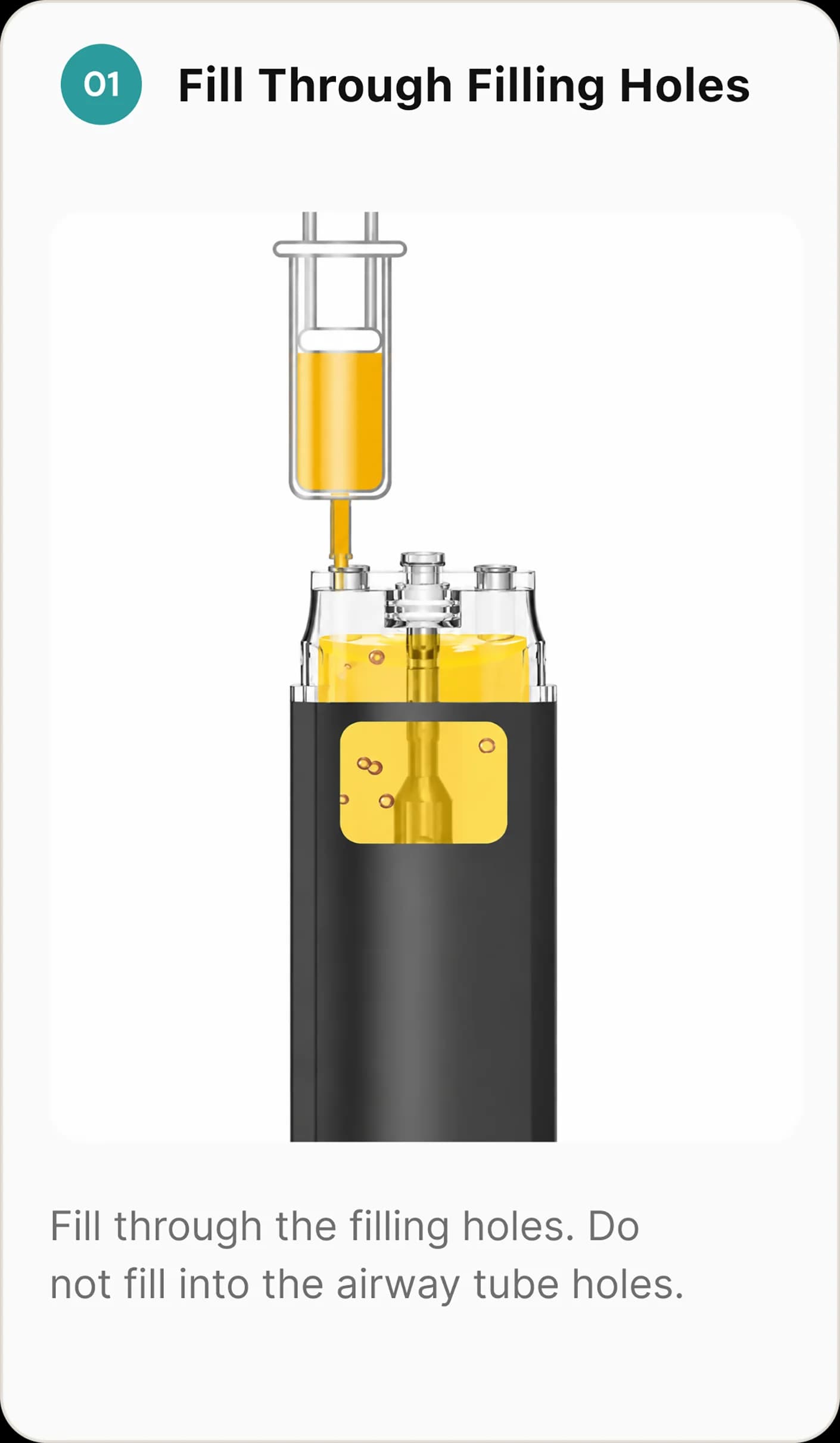

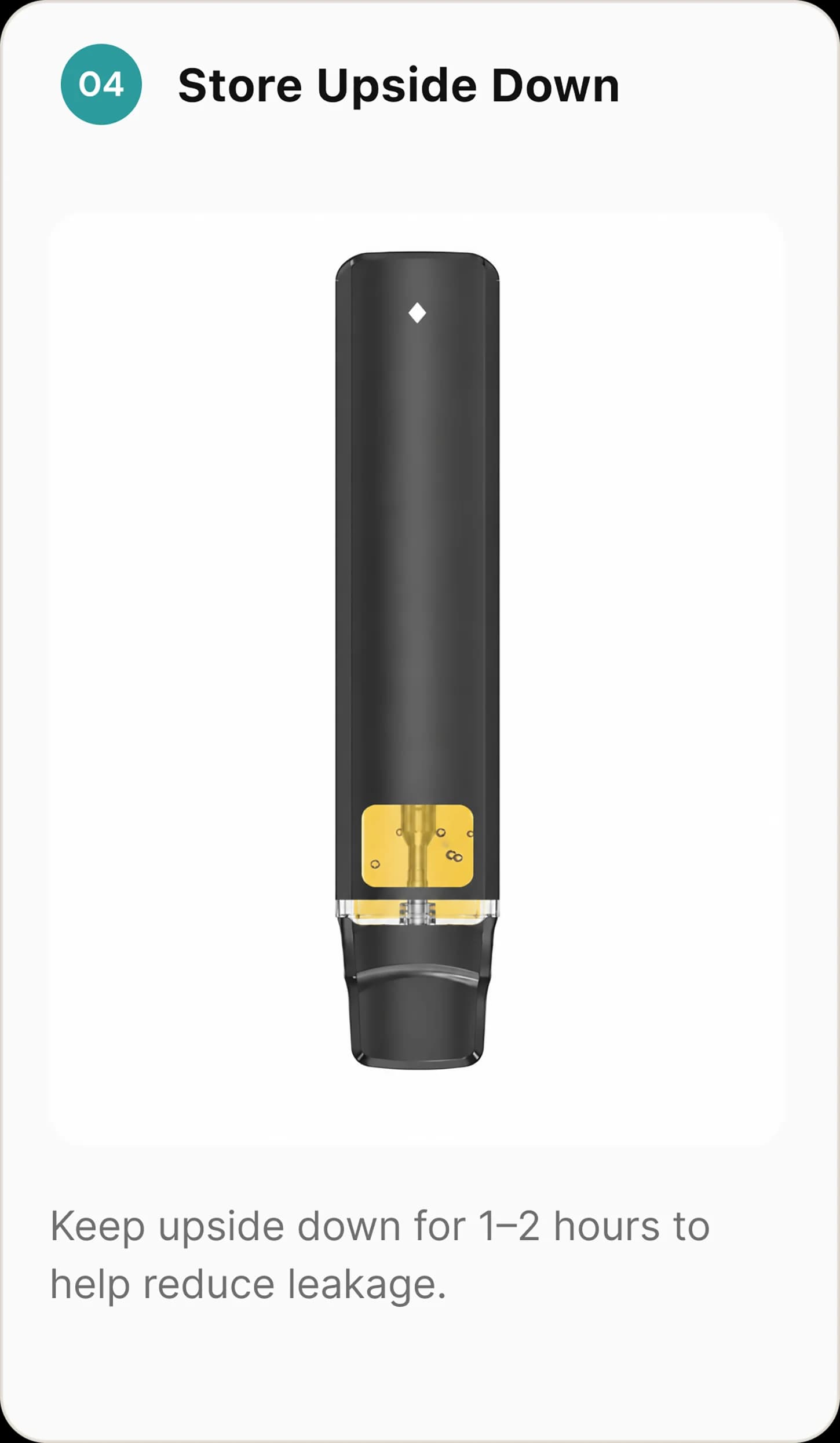

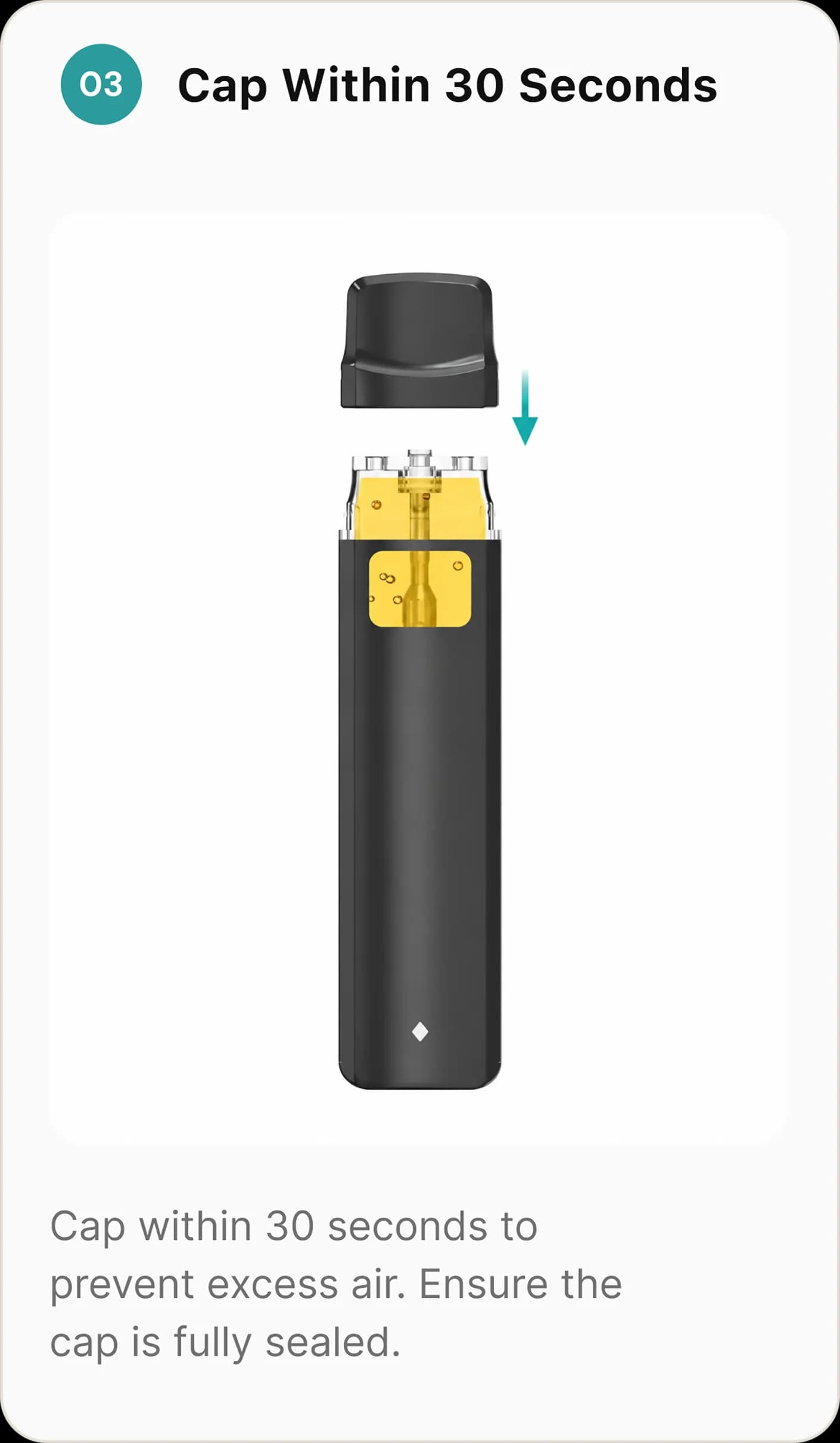

Fill through the filling holes (not the airway). Keep vertical at constant speed, cap within 30 seconds. Rest upside down for 1–2 hours after capping.
Still have questions? Email us at hello@rectitudepartners.com
| Additional Power Options |
|---|
| Available upon request |
| Standard Resistance | 1.4Ω |
|---|
| Resistance Options | 1.3–2.0Ω |
|---|
| Fluid Inlet Diameter | 4 × 1.8mm |
|---|
| Fluid Inlet Options | Available upon request |
|---|
| Post | SS316 medical standard |
|---|
| Activation | Inhale Activate |
|---|
| Battery Capacity | 320mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | USB-C |
|---|
Light flashes 20× then turns off
Matte & Glossy Finish
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
Paper Wraps
MOQ 10,000Extra 5–7 days
Keep sealed with protective film.
One charge/discharge cycle every 180 days.
1.0mL, 1.5mL, and 2.0mL — one slim body covers every fill-volume need.
Stainless steel post grade for consistent, durable heating performance.
Supports oils from 1,000–110,000 cps through a 4 × 1.8mm inlet.
Slim 90 × 24 × 10.2mm body — palm-concealable. Listed under 2 ounces.

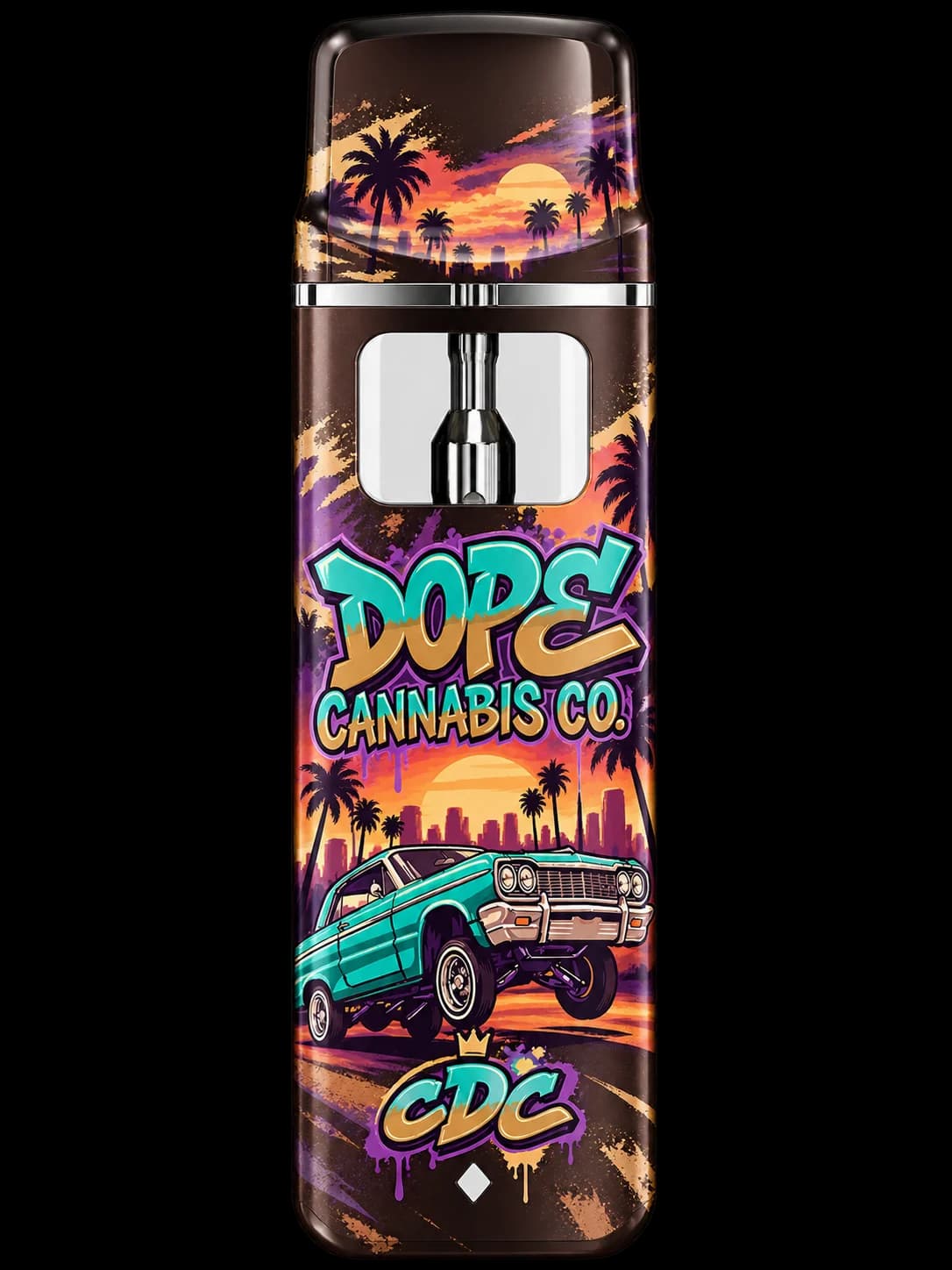

CASCADE A runs a single 3.5V standard power with a 1.4Ω heating element and 1.3–2.0Ω options on request. Standard fluid inlet is 4 × 1.8mm. Inhale activated — no button.

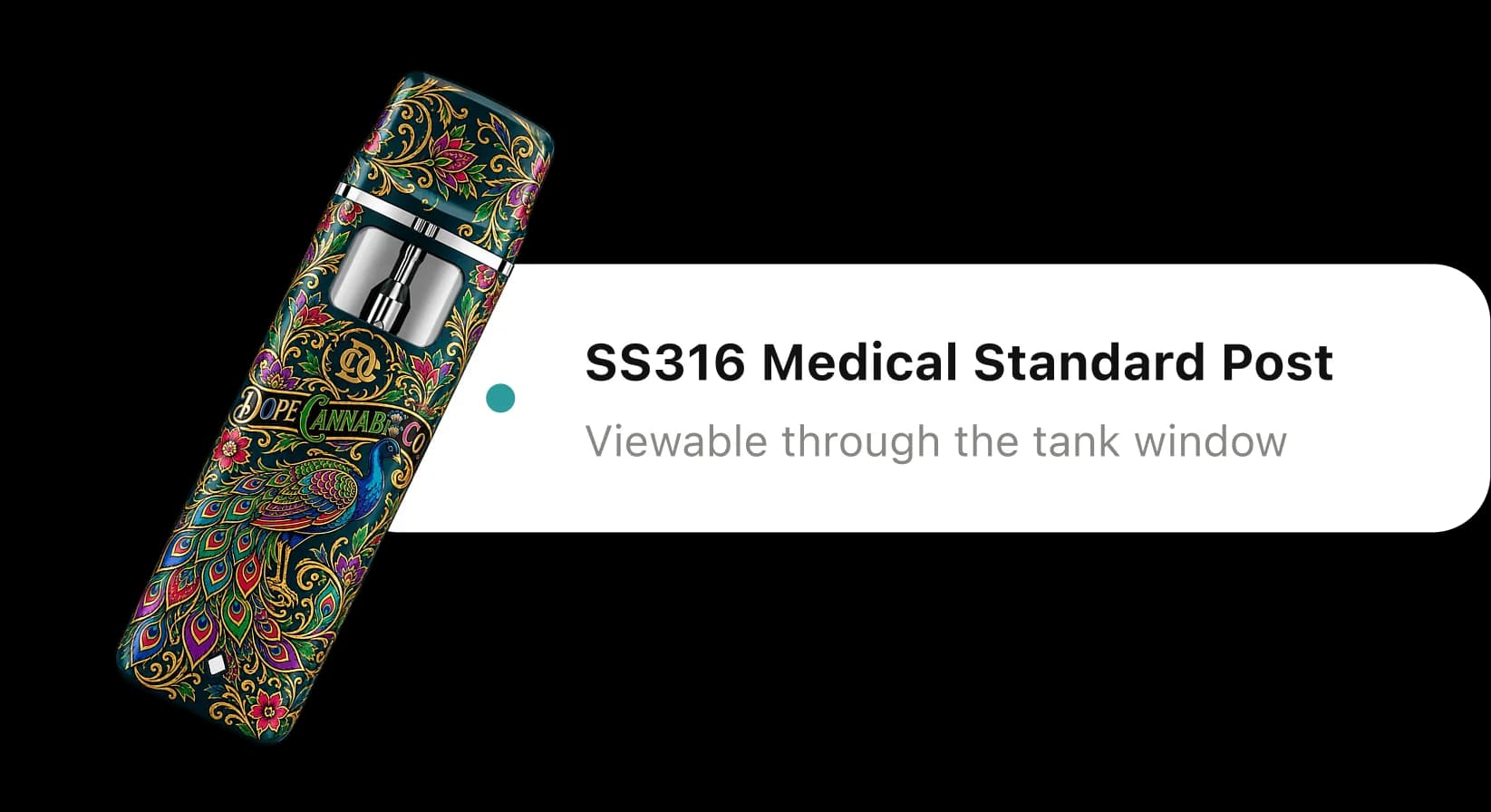

CASCADE A's core hardware feature is its SS316 medical-standard post — stainless steel construction for a consistent heating core across all three capacities.
Follow the correct fill procedure to ensure a clean, leak-free fill every time.
