CASCADE SCREEN DISPLAY AIO
A compact screen-display AIO available in 1.0mL, 1.5mL, and 2.0mL capacities, featuring a large display, three standard voltage settings, inhale activation, 320mAh battery, and USB-C charging.

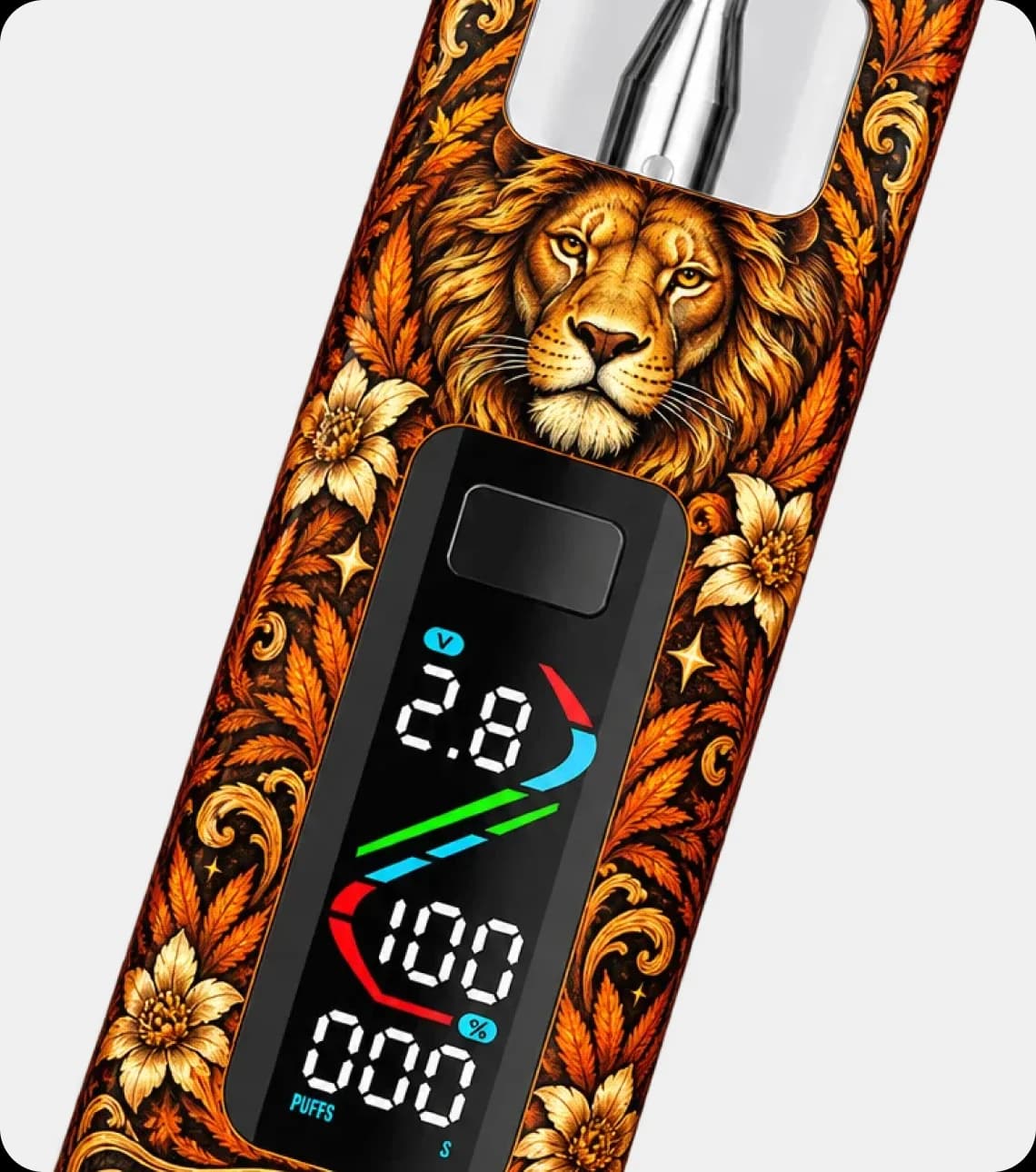

A large vertical screen is integrated into the front of the device, showing voltage and status indicators without an app or button combo.
| Voltage Display | Active 2.8V / 3.2V / 3.5V readout |
|---|---|
| Battery & Status | Charge and device graphics |
| Puff Counter Area | Session feedback on screen |

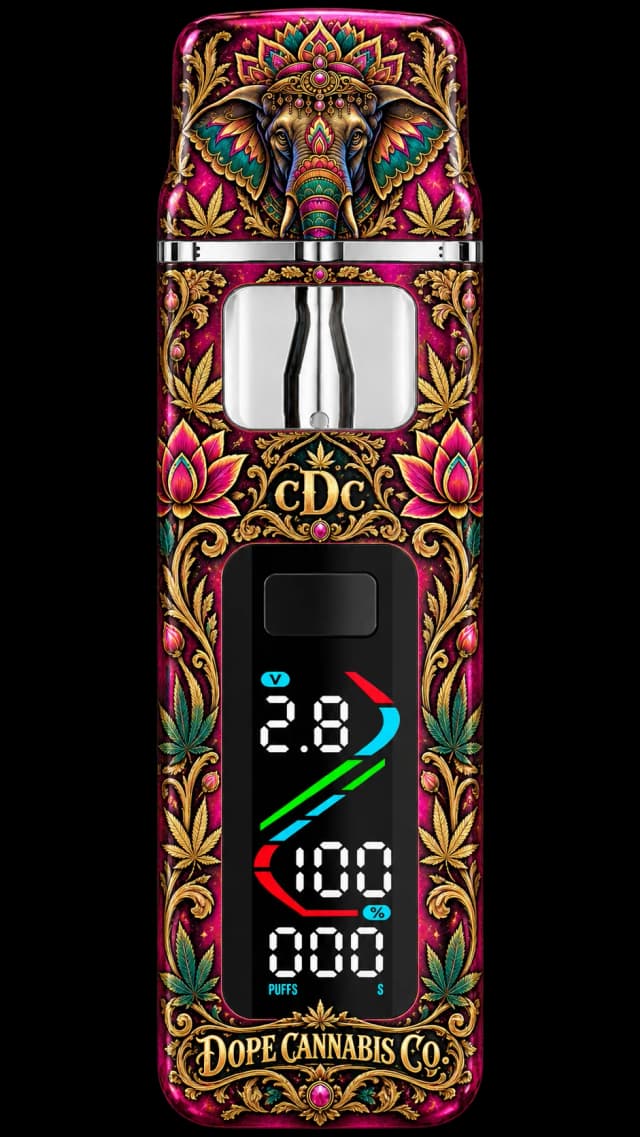

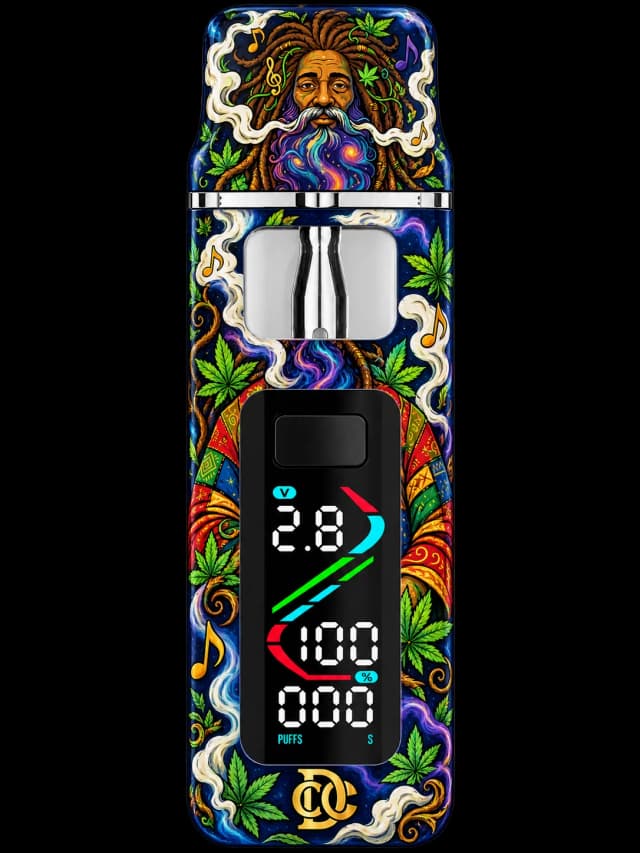

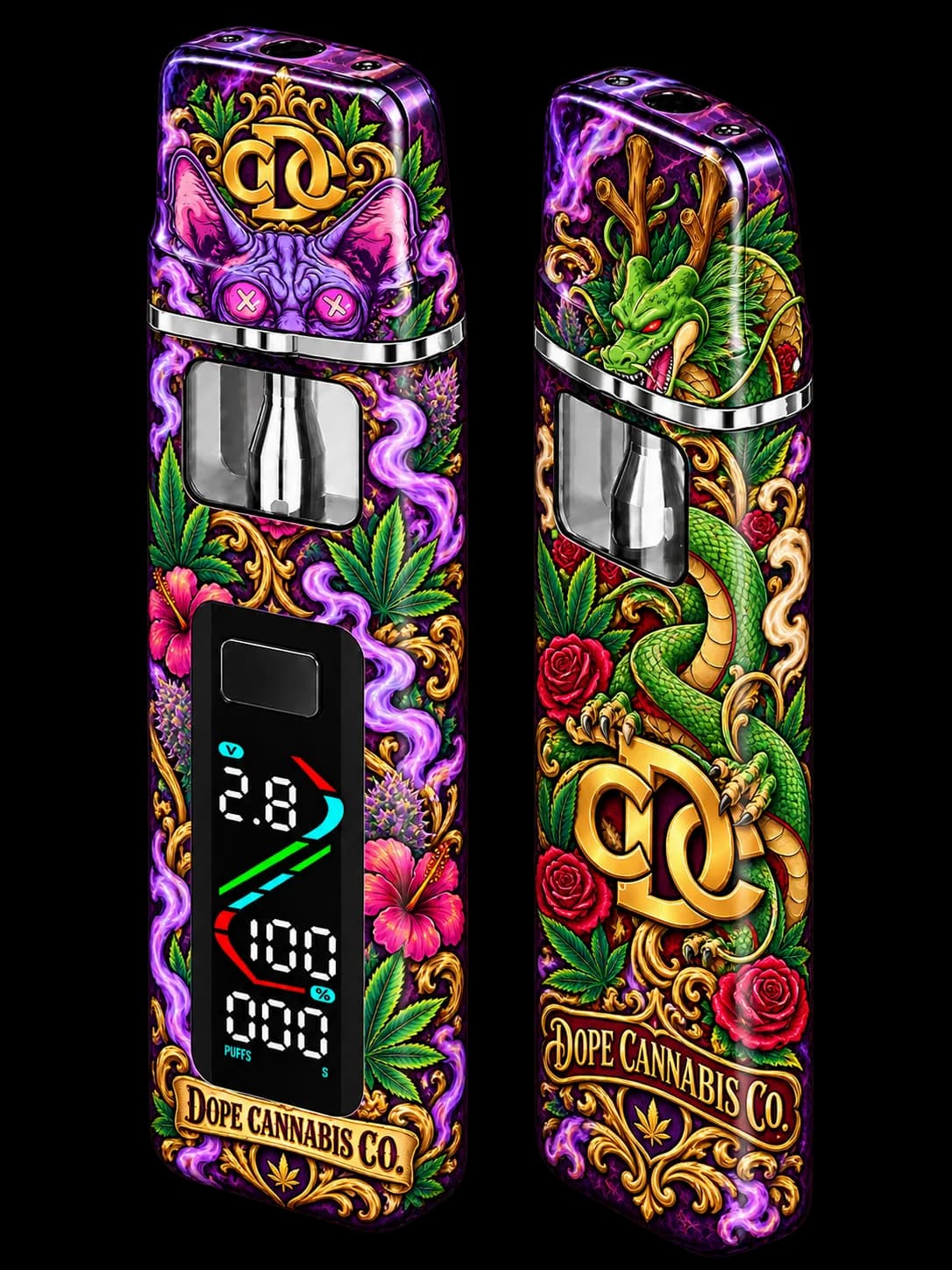

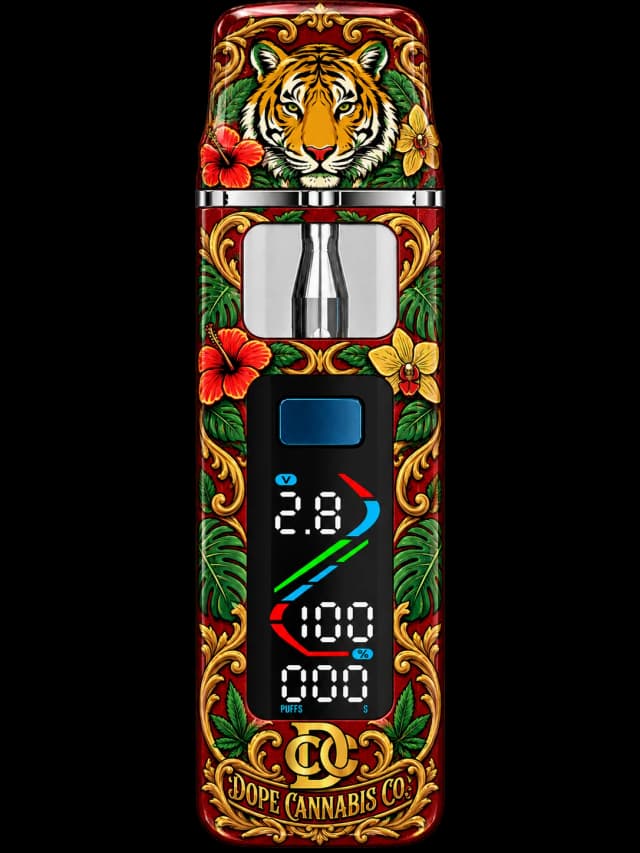

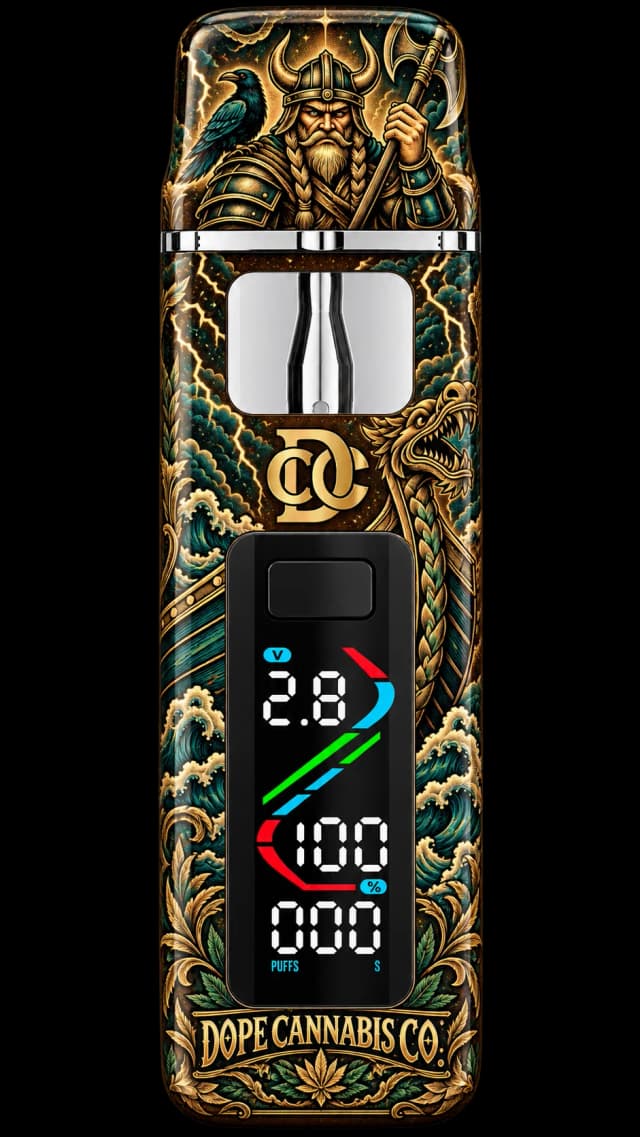

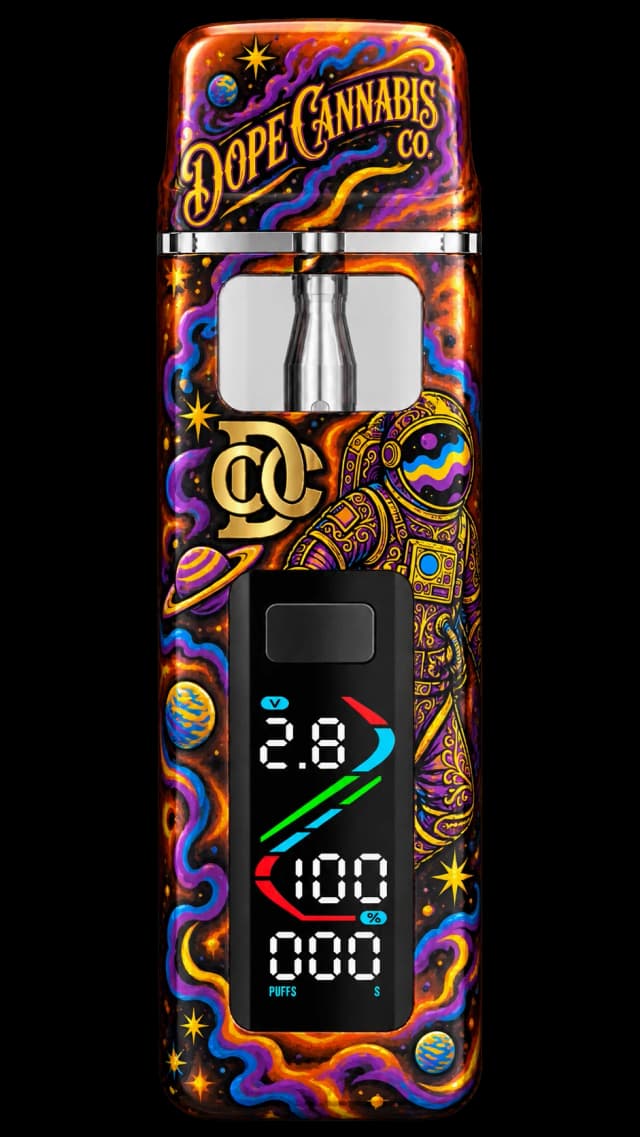

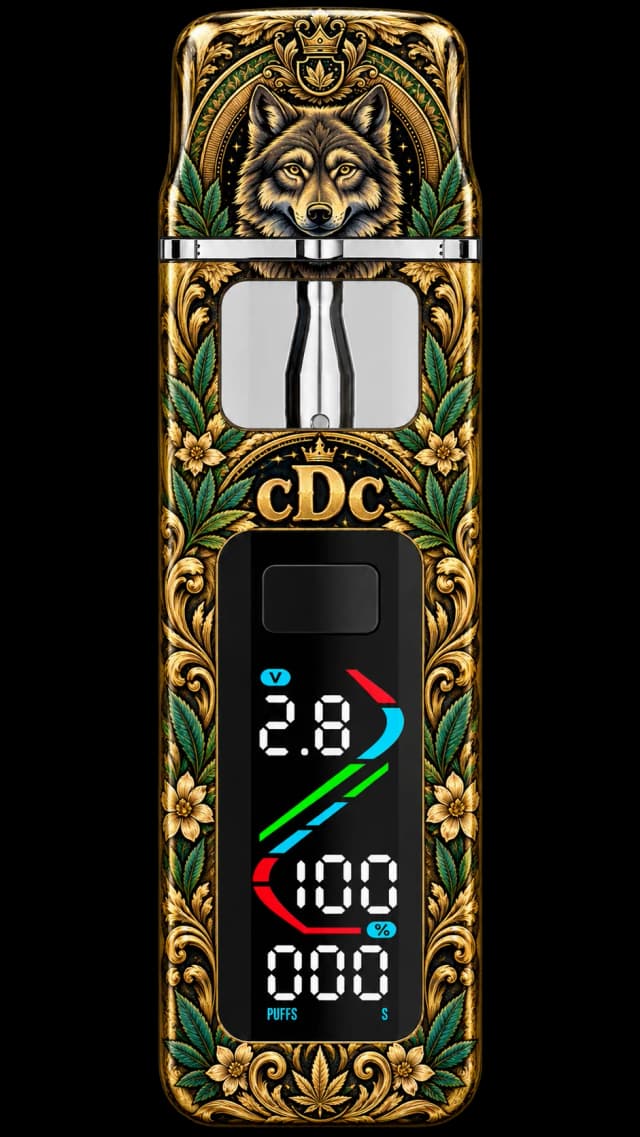

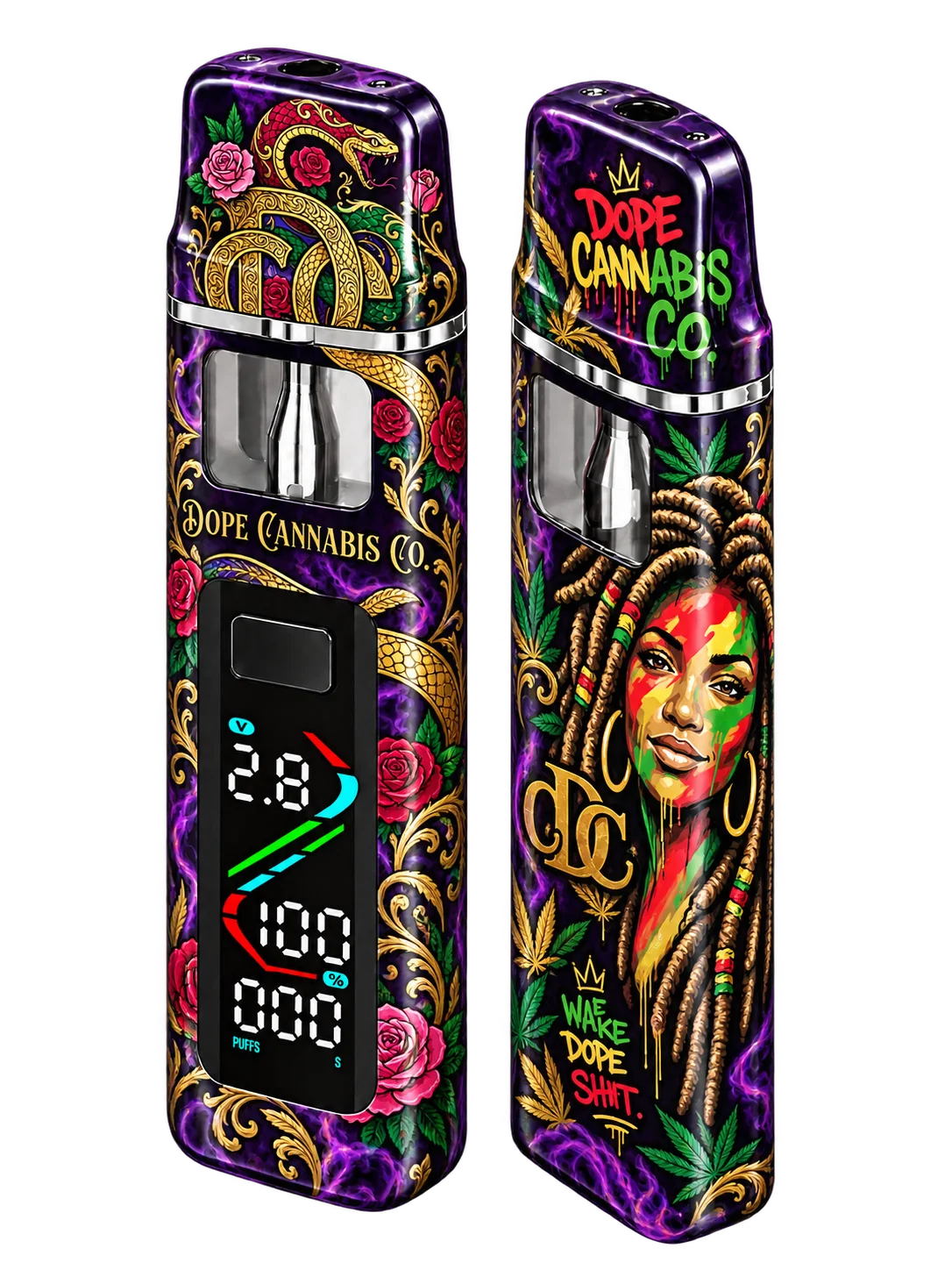

Front views, capacity lineup, big-screen macro, slim profile, tank, filling, USB-C, and custom artwork.
Complete specification data for procurement and compliance.
| Product | CASCADE AIO |
|---|---|
| Product Type | Screen Display AIO |
| Version / Size | 1.0mL / 1.5mL / 2.0mL |
| Max. Fill Volume | 1.0mL / 1.5mL / 2.0mL |
| Gross Internal Volume | 1.05mL / 1.55mL / 2.05mL |
| Dimensions | 95 × 24 × 10.2mm |
White light stays on for 3 seconds when loading limits are exceeded. The device then enters dormancy.
Normal draw is 10 seconds. If exceeded, the light flashes twice and output stops.
Charging
USB-C · Light stays on while charging
Fully Charged
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
Matte & Glossy Finish
-5°C to +35°C · 32°F–95°F
45–75% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

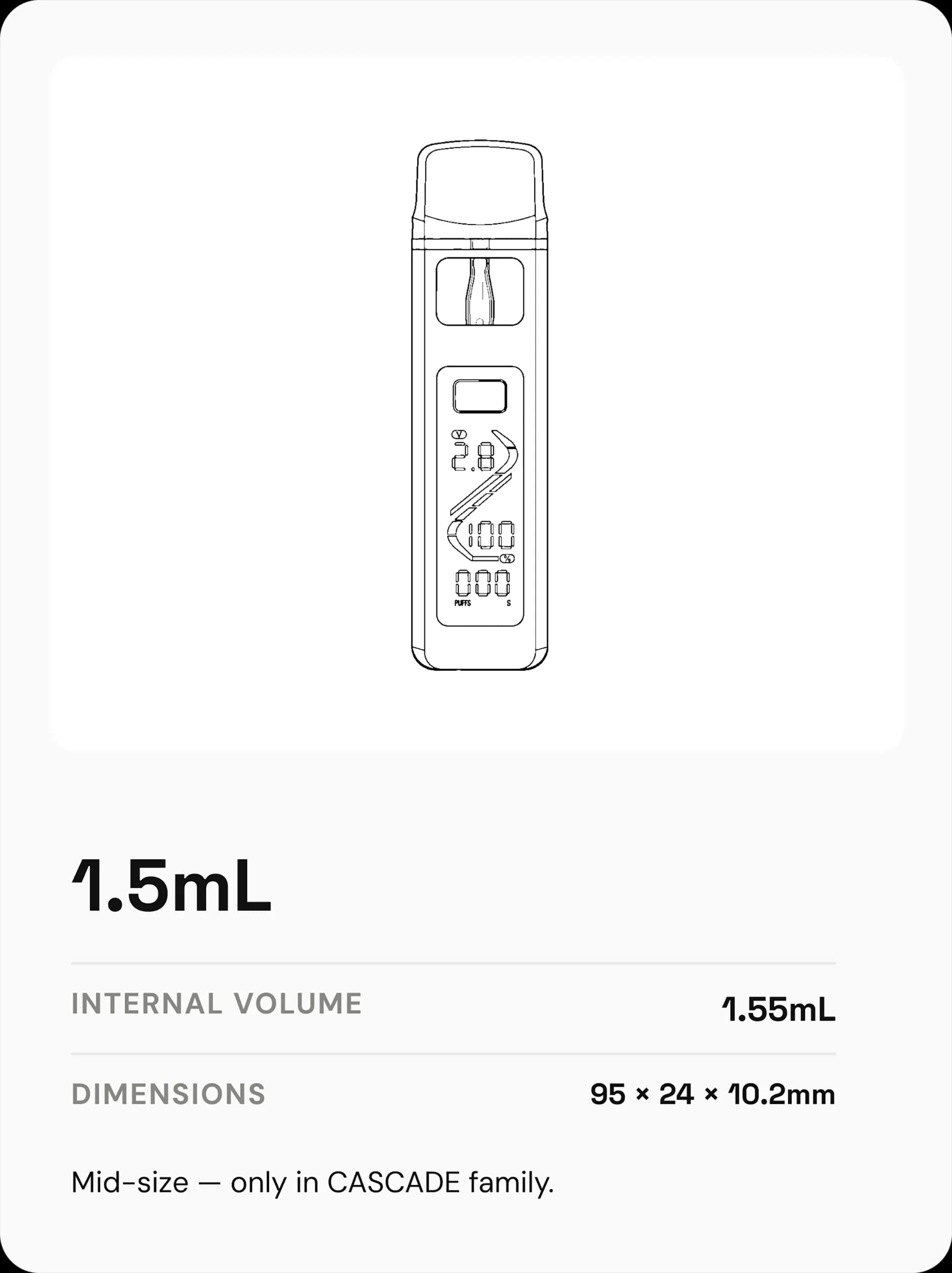

1.0mL (1.05mL gross), 1.5mL (1.55mL gross), and 2.0mL (2.05mL gross). All share the same 95 × 24 × 10.2mm platform.
Yes — a big screen display integrated into the slim 10.2mm body.
Three standard modes: 2.8V low, 3.2V medium, 3.5V high. Additional options on request.
Fill through the filling holes (not the airway). Keep vertical at constant speed, cap within 30 seconds. Rest upside down for 1–2 hours.
Yes — silk printing, powder coating, laser engraving, electroplating, soft touch, matte/glossy finishes, colored mouthpieces, and paper wraps.
Still have questions? Email us at hello@rectitudepartners.com
| Standard Power |
|---|
| 2.8V / 3.2V / 3.5V |
| Additional Power Options | Available upon request |
|---|
| Standard Resistance | 1.4Ω |
|---|
| Resistance Options | 1.3–2.0Ω |
|---|
| Fluid Inlet | 4 × 1.8mm |
|---|
| Fluid Inlet Options | Available upon request |
|---|
| Activation | Inhale Activate |
|---|
| Battery Capacity | 320mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | USB-C |
|---|
Light flashes 20× then turns off
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
Paper Wraps
MOQ 10,000Extra 5–7 days
Keep sealed with protective film.
One charge/discharge cycle every 180 days.

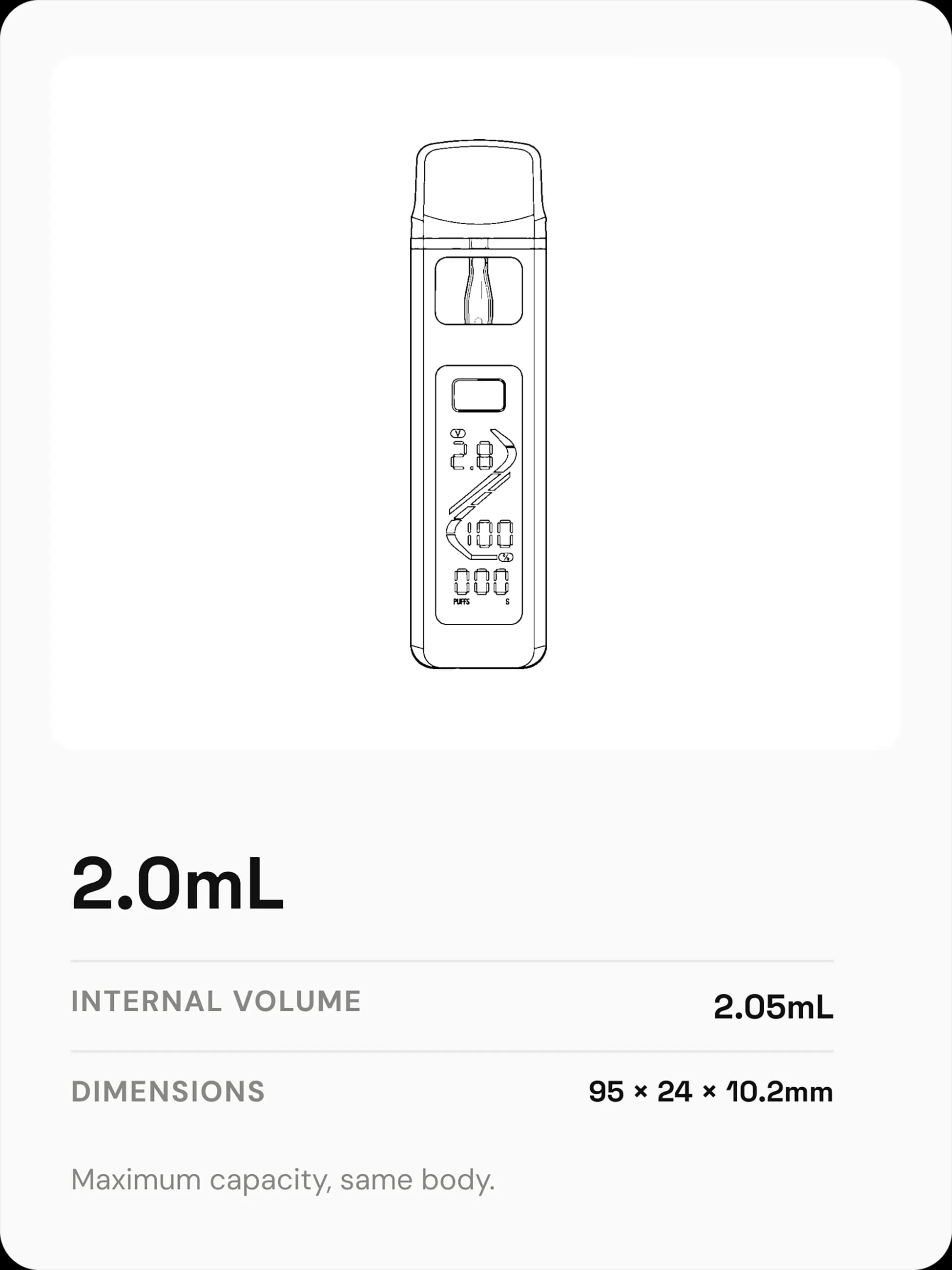

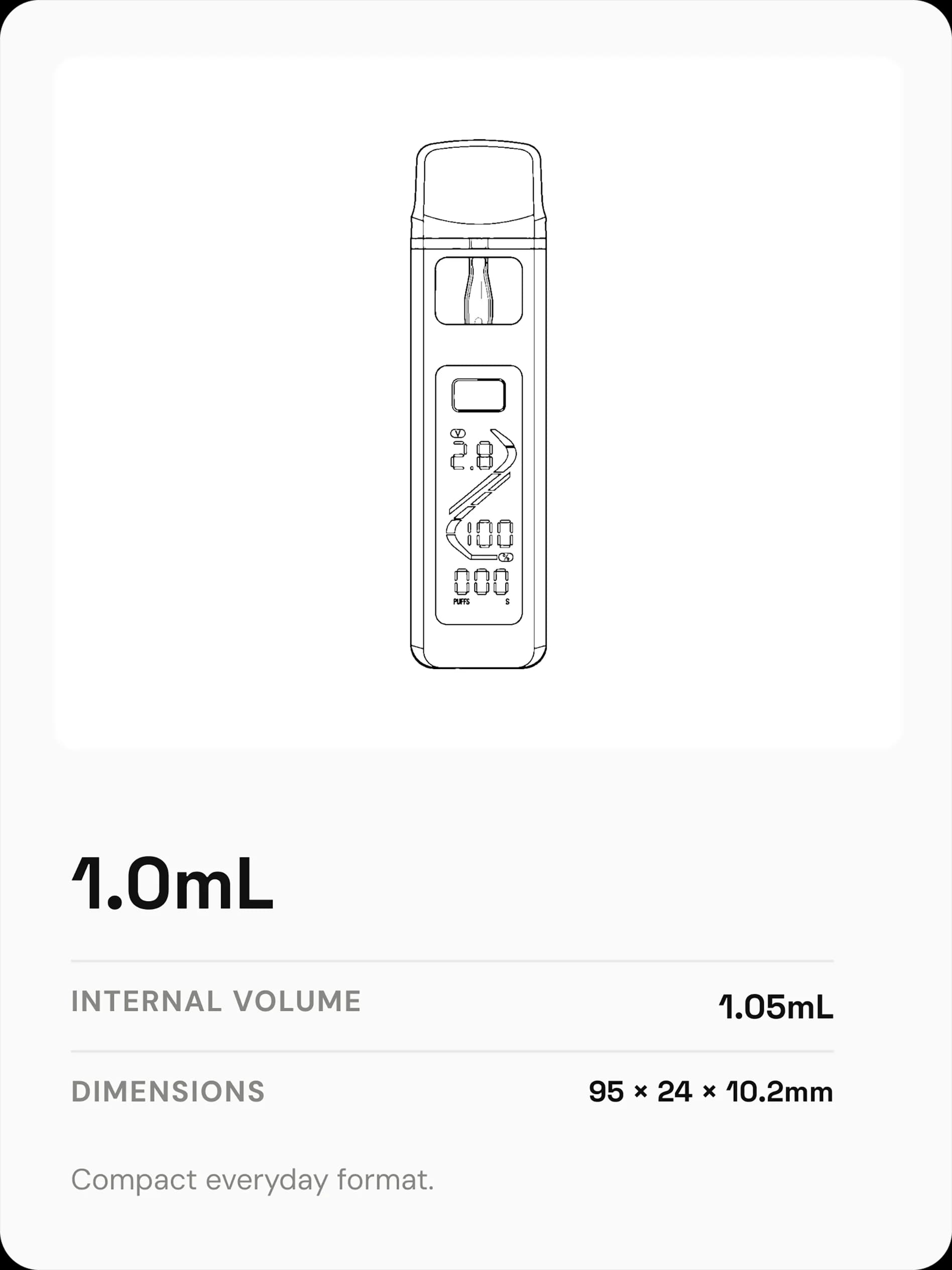

1.0mL, 1.5mL, and 2.0mL — one slim 95mm body covers every fill-volume need.
Large vertical screen shows voltage and device status at a glance.
Supports oils from 1,000–110,000 cps through a 4 × 1.8mm inlet.
Slim 95 × 24 × 10.2mm body — palm-concealable. Listed under 2 ounces.
