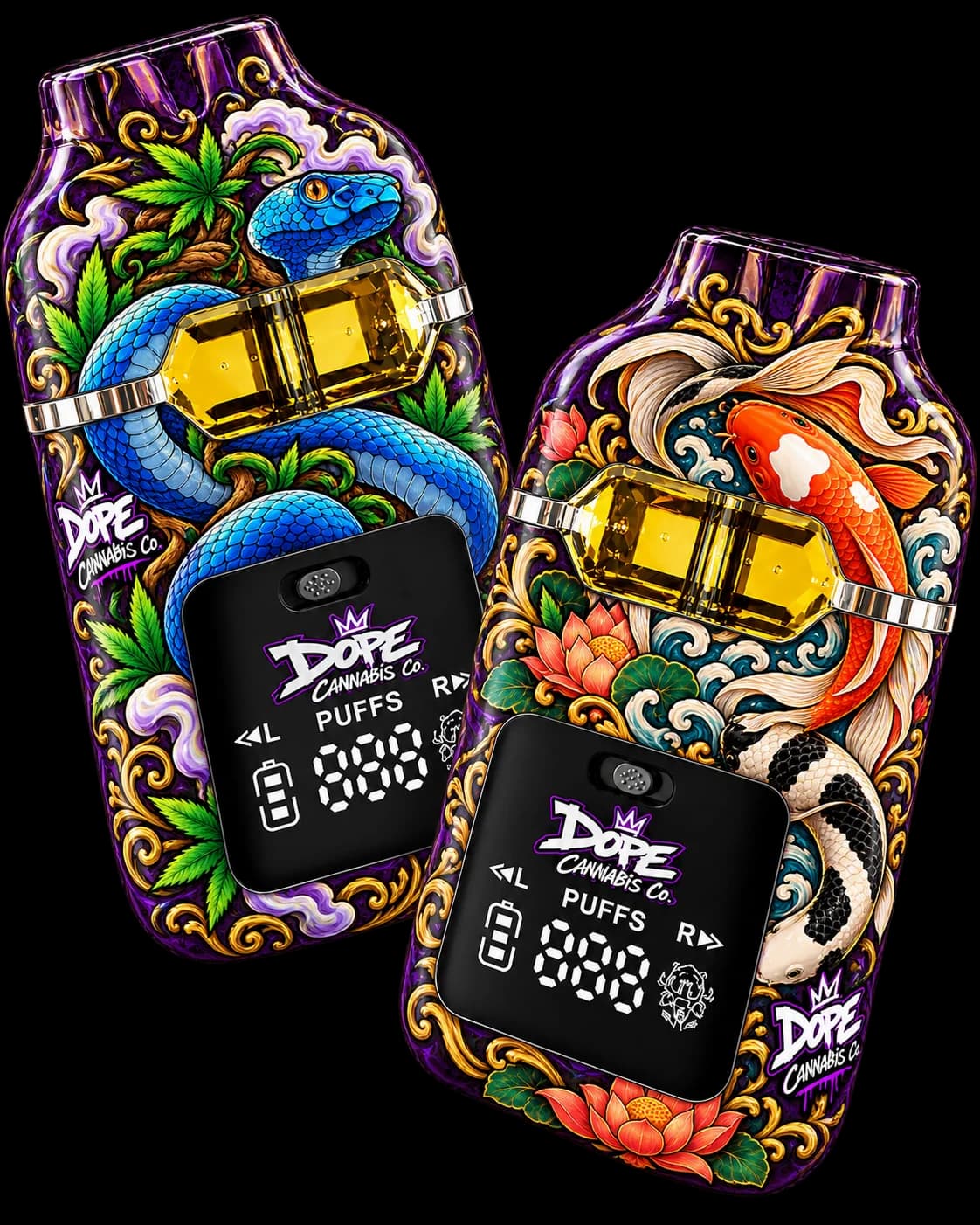

Dragon Dual Tank Postless AIO
A dual-tank postless disposable AIO with screen display, chamber switching, inhale activation, customizable screen programming, and USB-C charging.
Hardware switch controls which chamber is active.

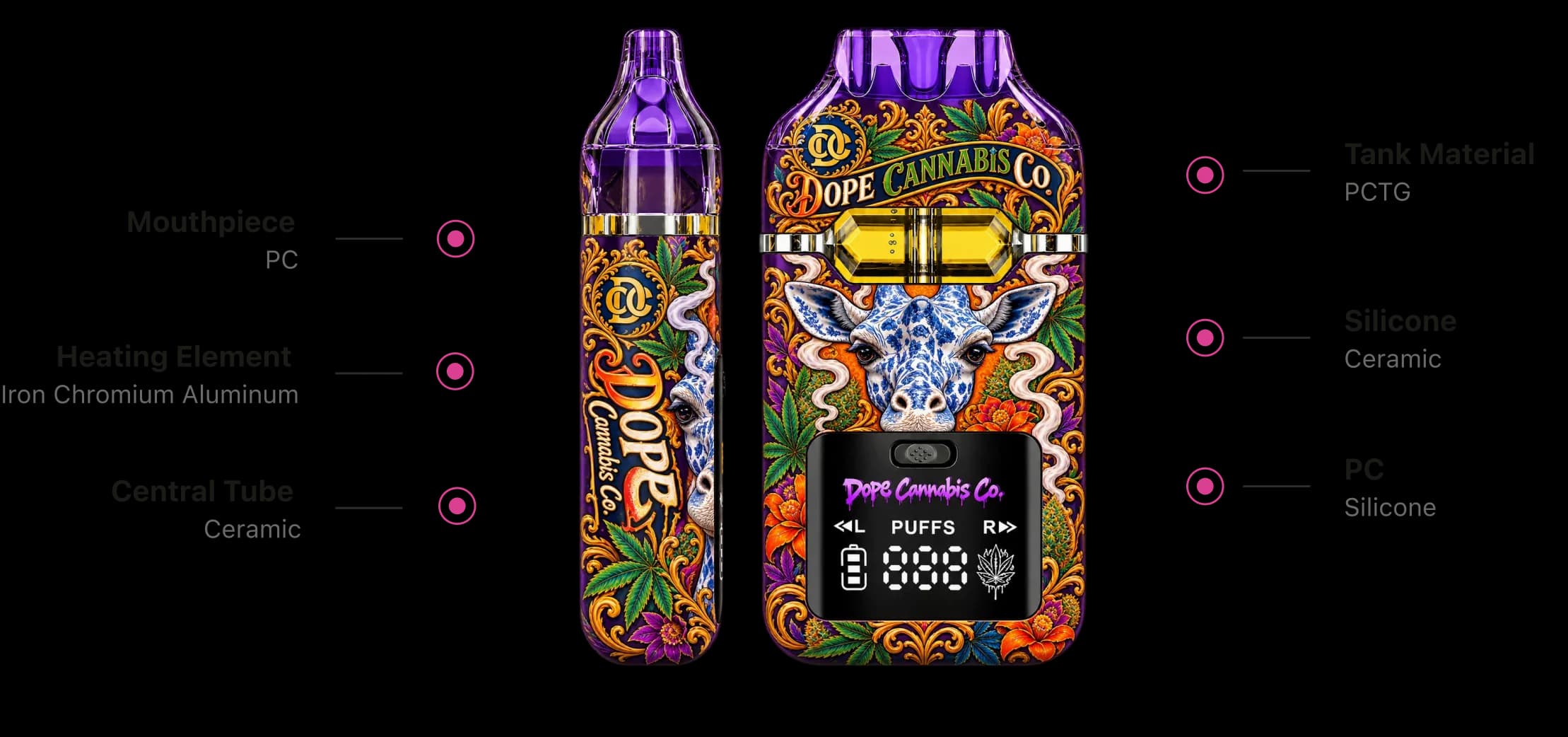

Dual tanks, screen, switch, mouthpiece, USB-C port, filling process, and dieline views.
Complete specification data for procurement and compliance.
| Product Type | Dual Tank Postless Screen Display AIO |
|---|---|
| Version | 1.0+1.0mL / 0.5+0.5mL |
| Max Fill Volume | 1.0+1.0mL / 0.5+0.5mL |
| Internal Volume | 1.05+1.05mL / 0.55+0.55mL |
| Dimension | 67.2 × 36 × 16.2mm |
| Standard Power | 3.0V |

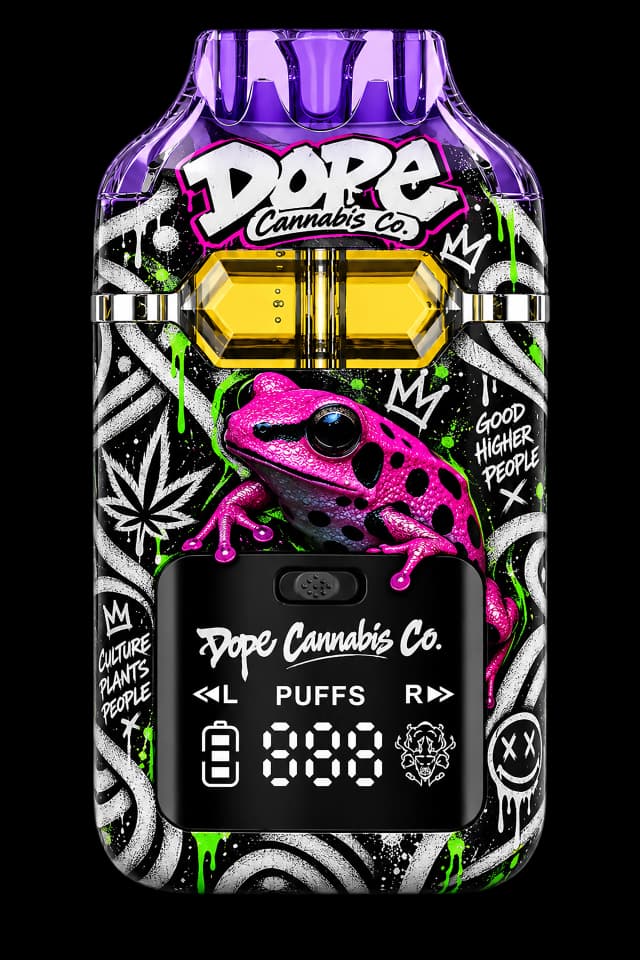

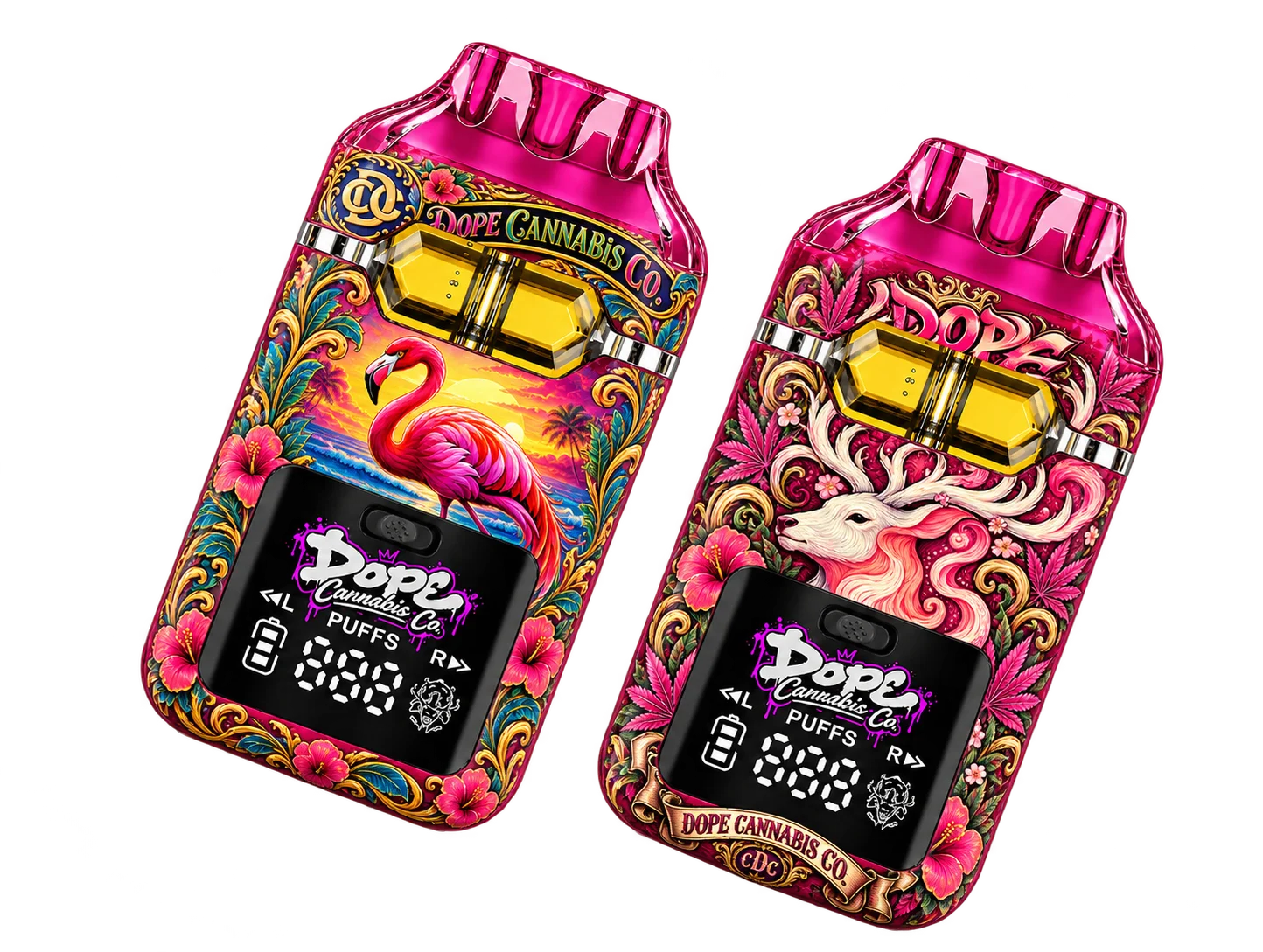

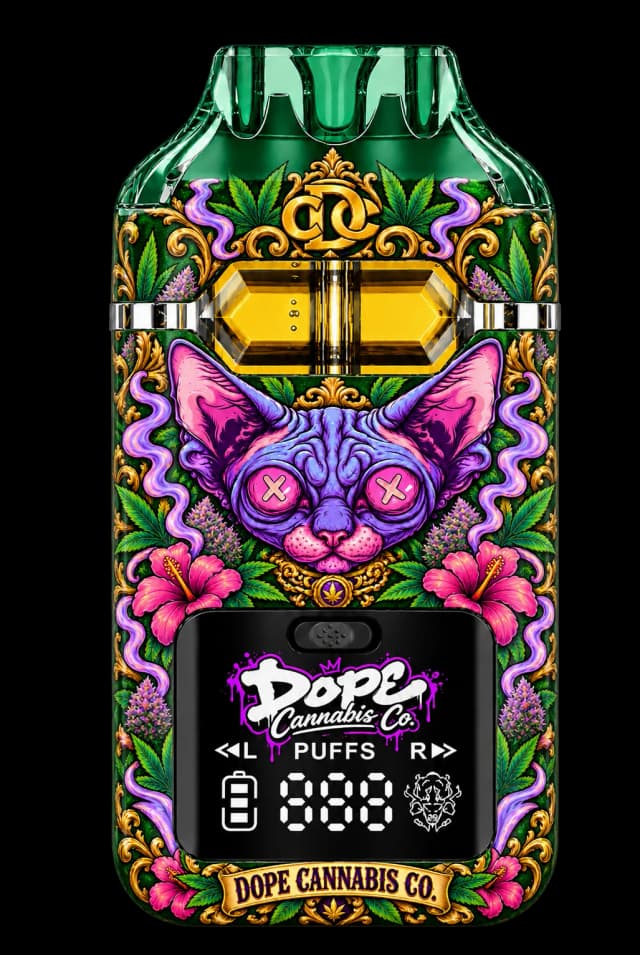

DRAGON's screen shows branding, puff information, left/right tank indicators, and device status. The full display layout is programmable for your brand.
| Tank Indicators | Left / right / both active chamber |
|---|---|
| Puff Information | Live draw feedback on screen |
| Brand Graphics | Custom logo and status artwork |
| Screen programming available | MOQ 10,000 · Extra 10–14 days for full display customization. |
White light stays on for 3 seconds when the loading limit is exceeded and a short circuit occurs. The device then enters dormancy.
Normal draw time is 10 seconds. If exceeded, the light flashes twice and output stops.
Charging
USB-C · Light stays on while charging
Fully Charged
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
Matte & Glossy Finish
-5°C to +35°C
45–75% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

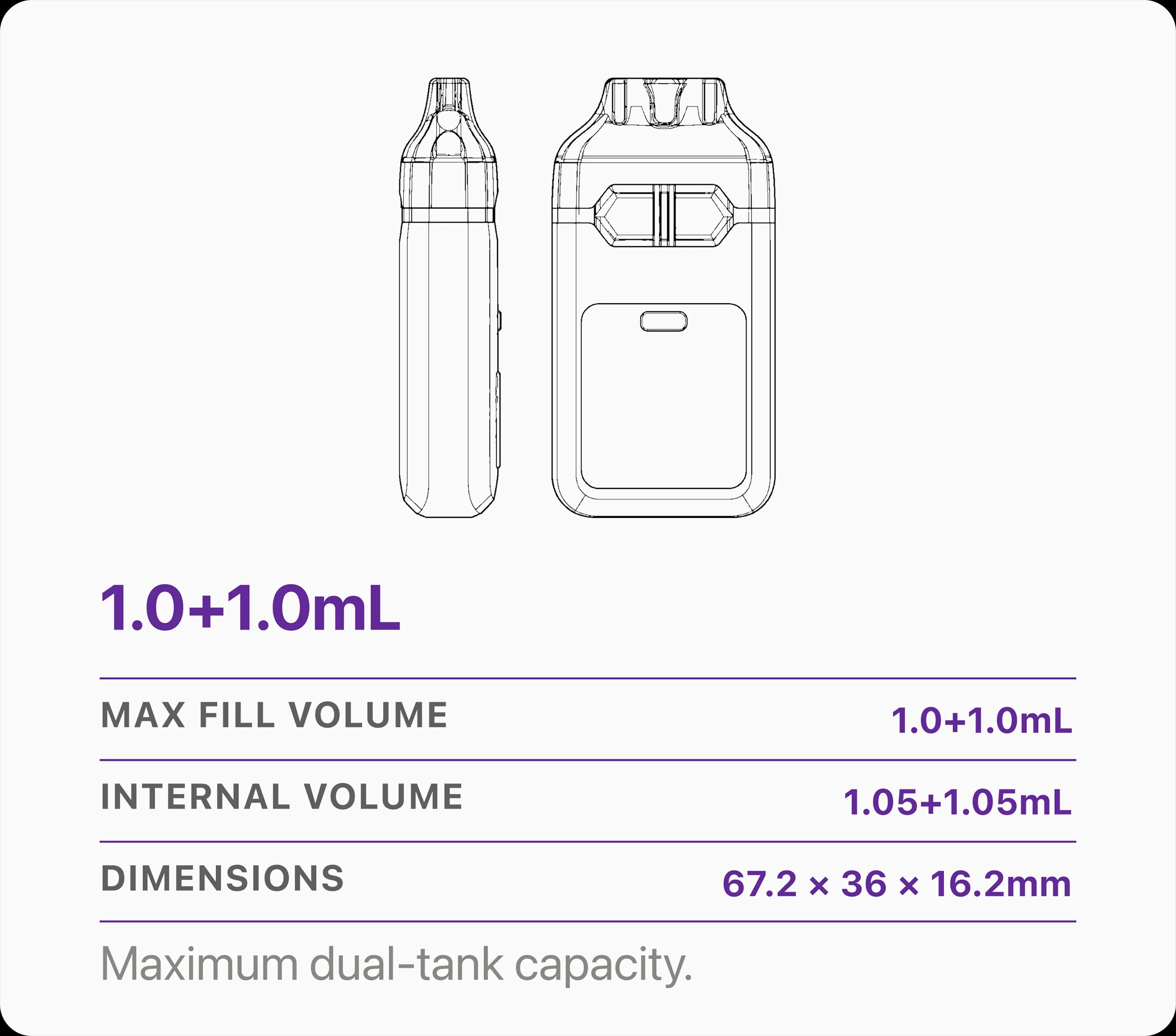

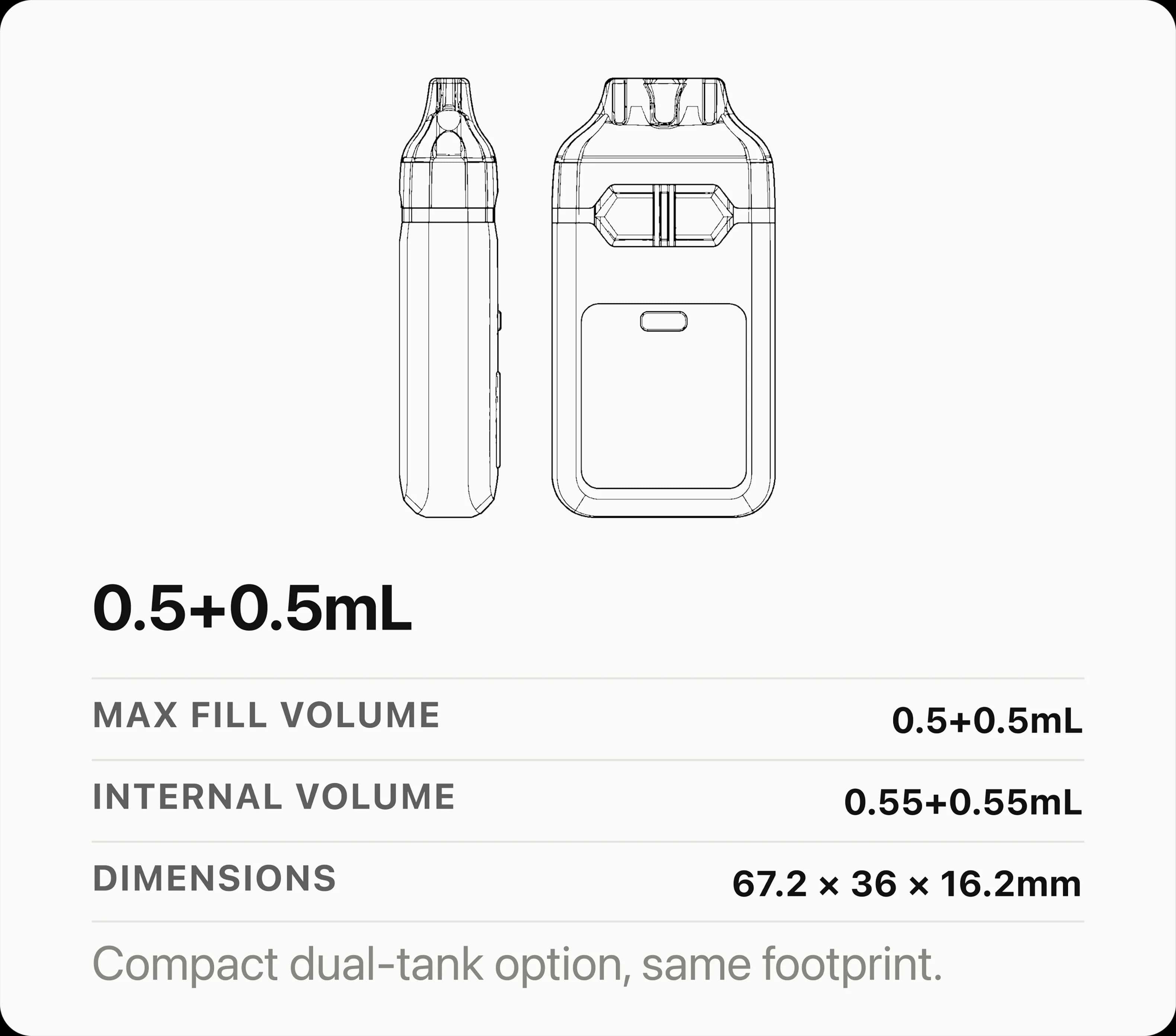

Yes. DRAGON is a dual-tank postless AIO — 1.0+1.0mL (1.05+1.05mL internal) or 0.5+0.5mL (0.55+0.55mL internal). Both share the same 67.2 × 36 × 16.2mm body.

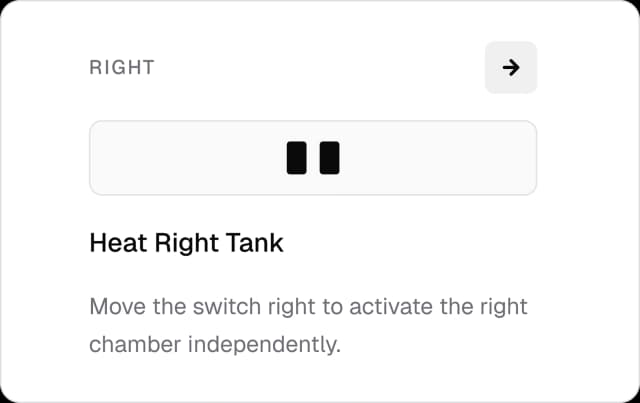

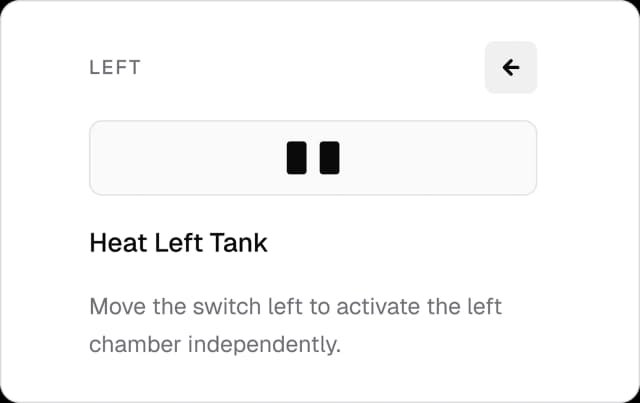

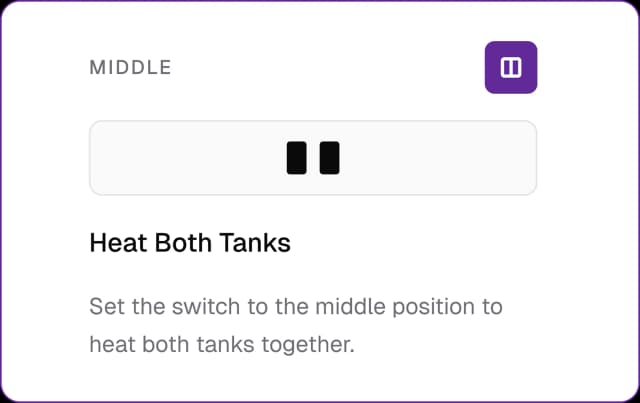

Yes. Switch left for the left tank, right for the right tank, or center for both tanks together.
Yes. A highly customizable screen shows branding, puff info, left/right tank indicators, and status graphics. Screen programming available at MOQ 10,000 (+10–14 days).
3.0V standard power, 1.6 ± 0.1Ω resistance. Additional power options available upon request.

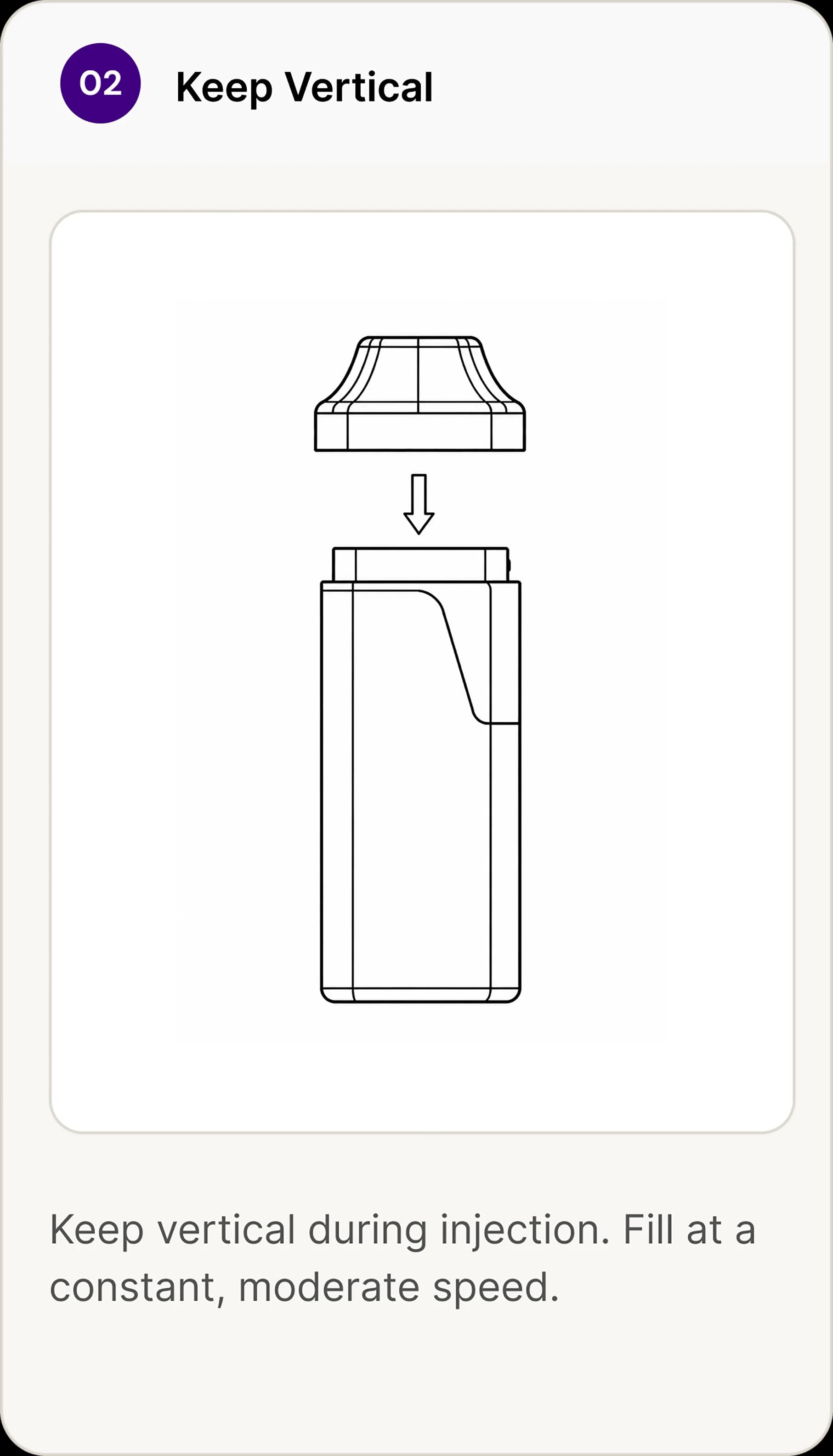

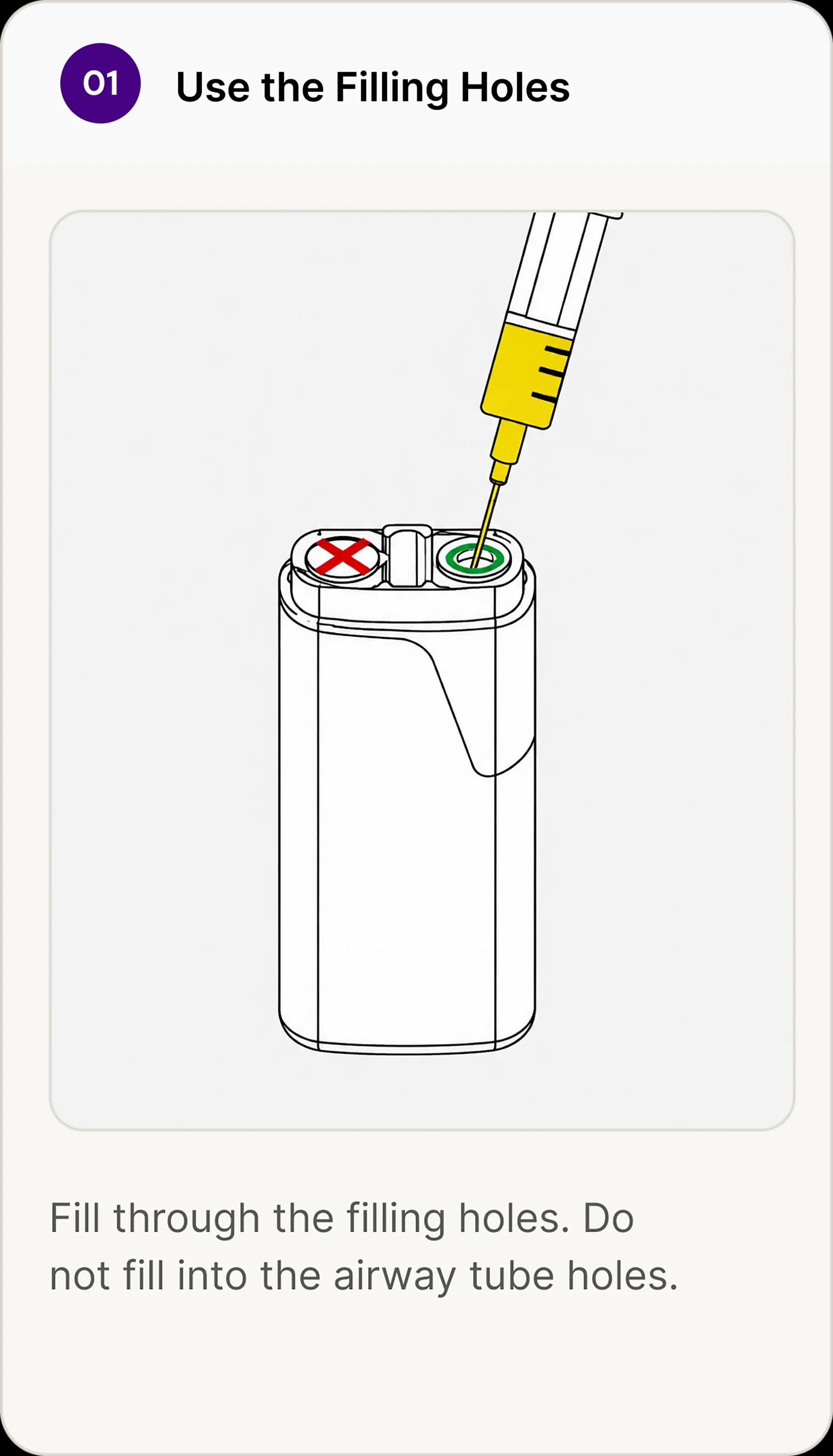

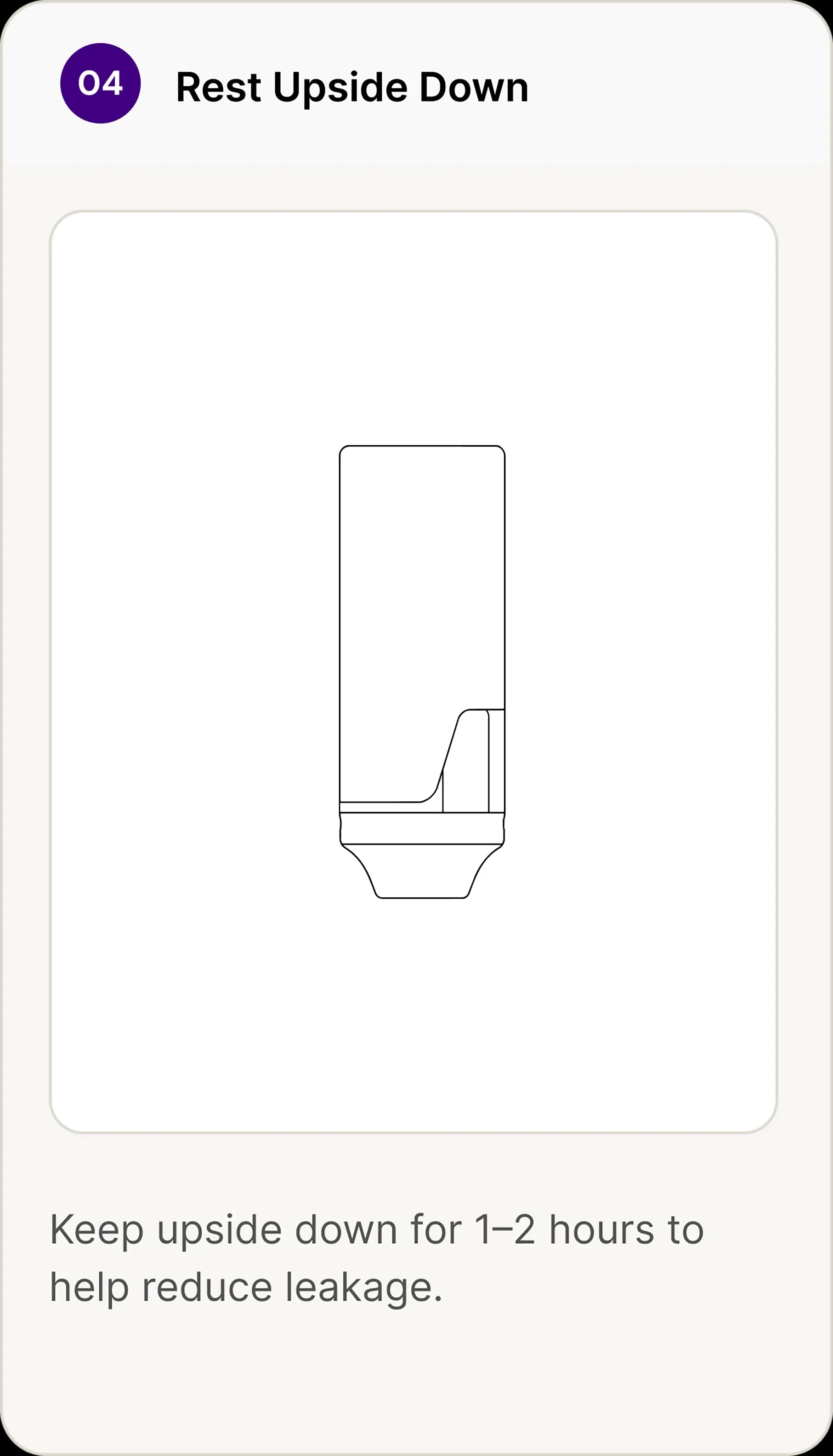

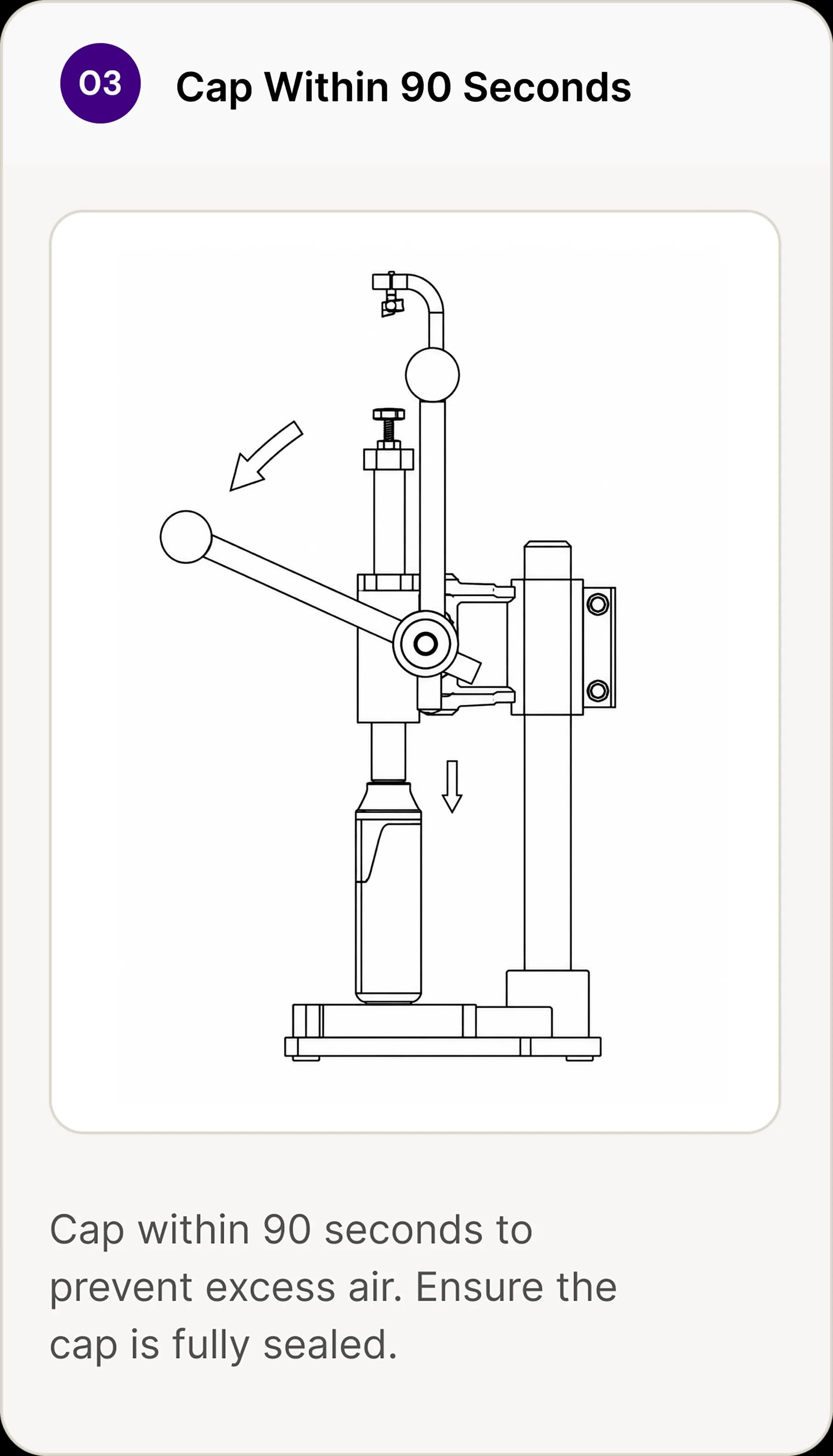

Fill through the filling holes (not the airway). Keep vertical at constant speed, cap within 90 seconds. Rest upside down for 1–2 hours after capping.
Still have questions? Email us at hello@rectitudepartners.com
| Additional Power Options |
|---|
| Available upon request |
| Resistance | 1.6 ± 0.1Ω |
|---|
| Fluid Inlet | Postless |
|---|
| Activation | Inhale Activate |
|---|
| Battery Capacity | 280mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | USB-C |
|---|
Light flashes 20× then turns off
MOQ 10,000Extra 5–7 days
Color Options
MOQ 10,000Extra 5–7 days
Screen Programming
MOQ 10,000Extra 10–14 days
Keep sealed with protective film during storage.
Complete one charge/discharge cycle every 180 days.

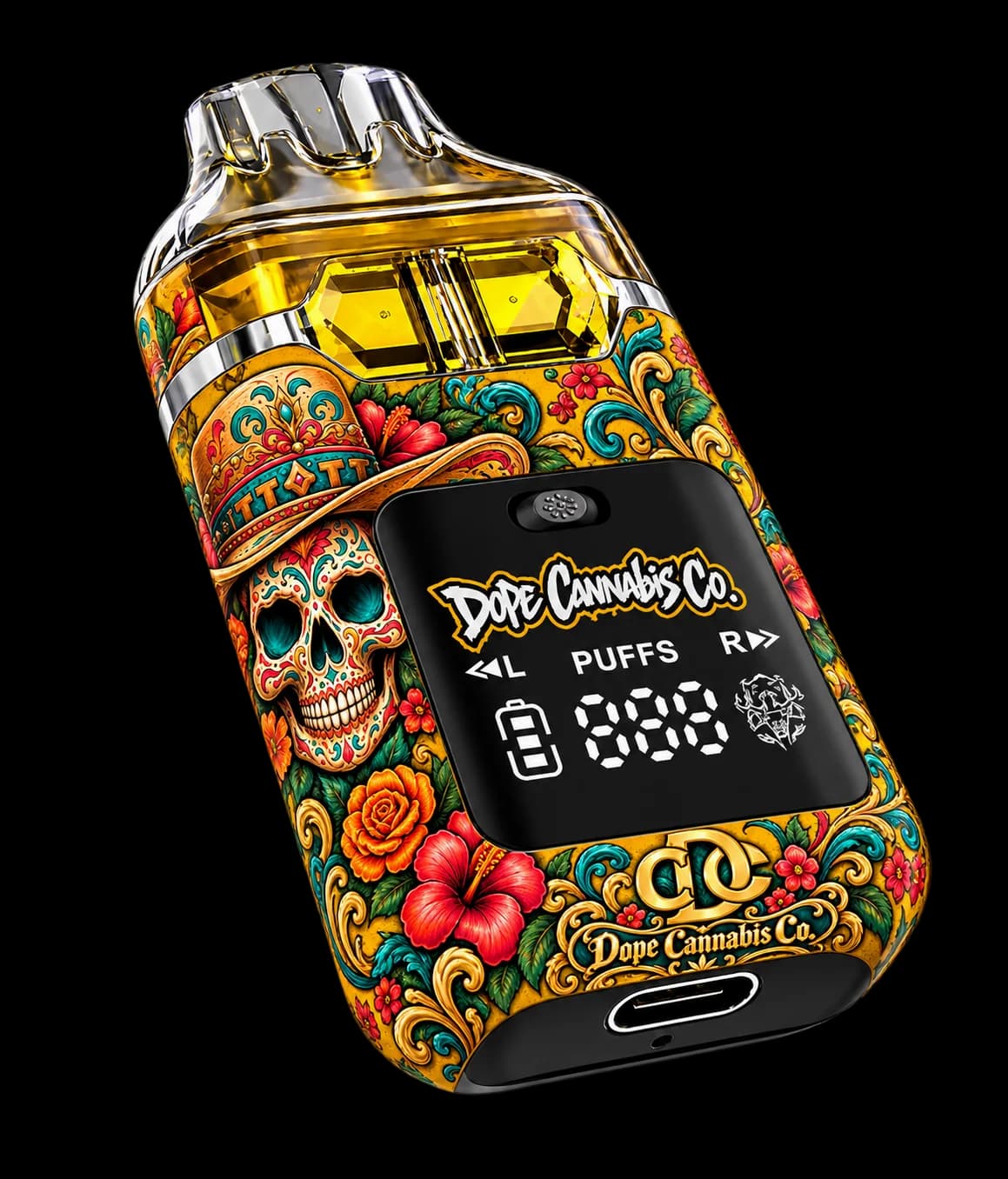

Two independent oil chambers in one compact body — 1.0+1.0mL or 0.5+0.5mL.
Physical switch chooses which tank heats: left, right, or both together.
Postless heating system for a cleaner draw path in both chambers.
Supports oils from 1,000–110,000 cps in either tank.
Smart screen display shows tank indicators, puff info, and status — fully programmable.
Compact dual-tank form — palm-concealable. Listed under 2 ounces.
DRAGON allows a wider 90-second cap window triple the 30-second window on single-chamber AIOs.
