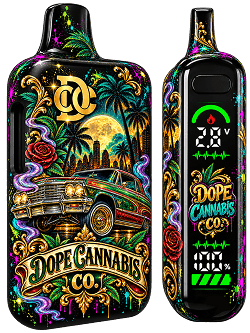

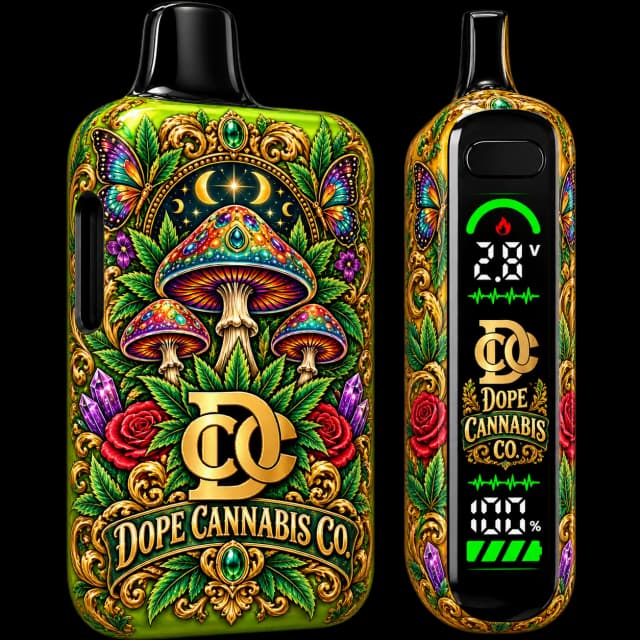

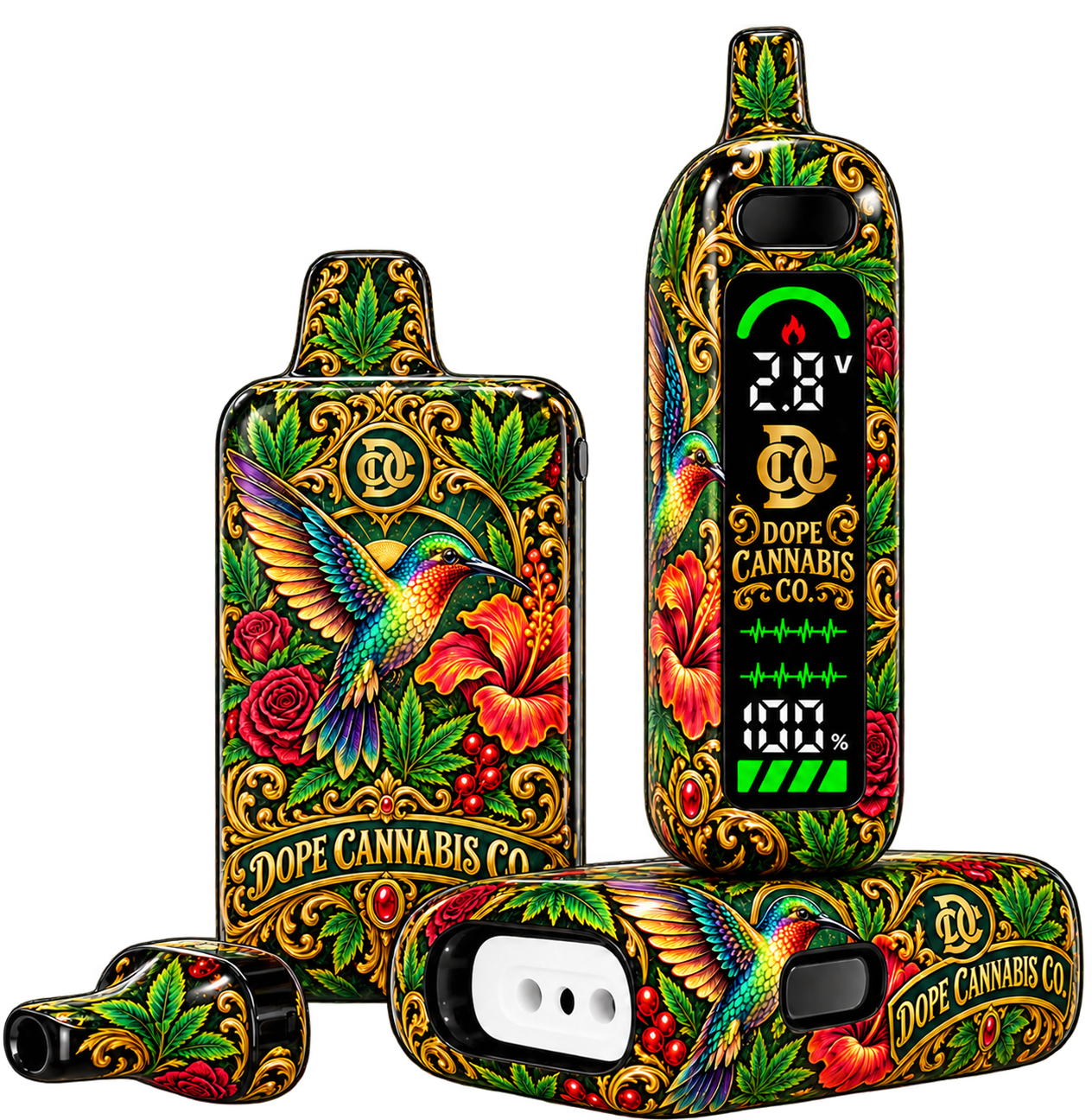

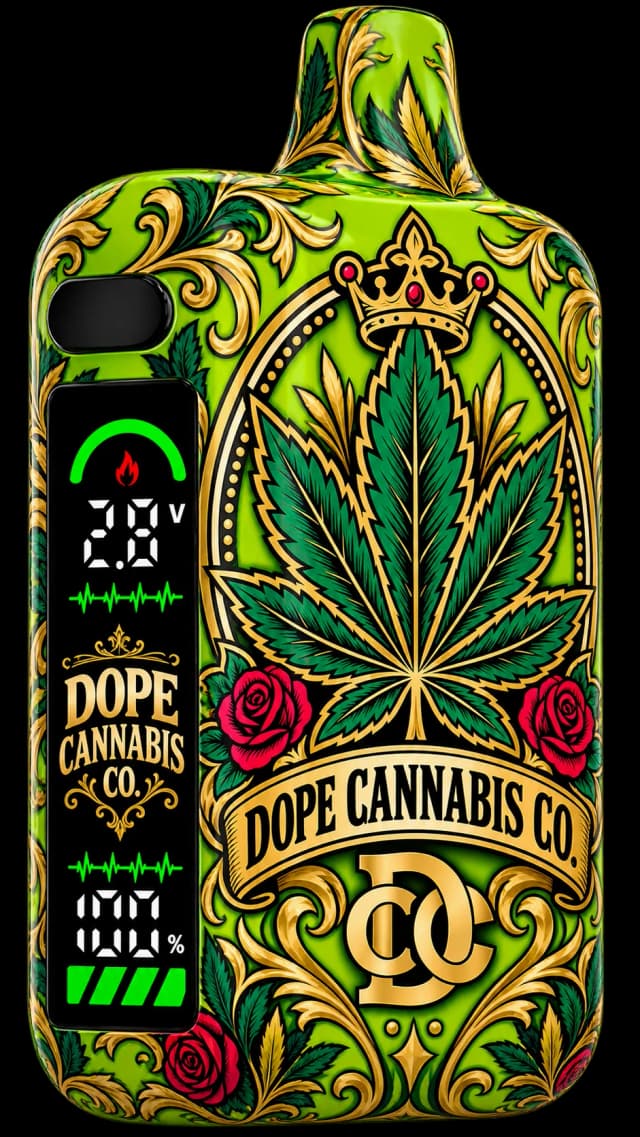

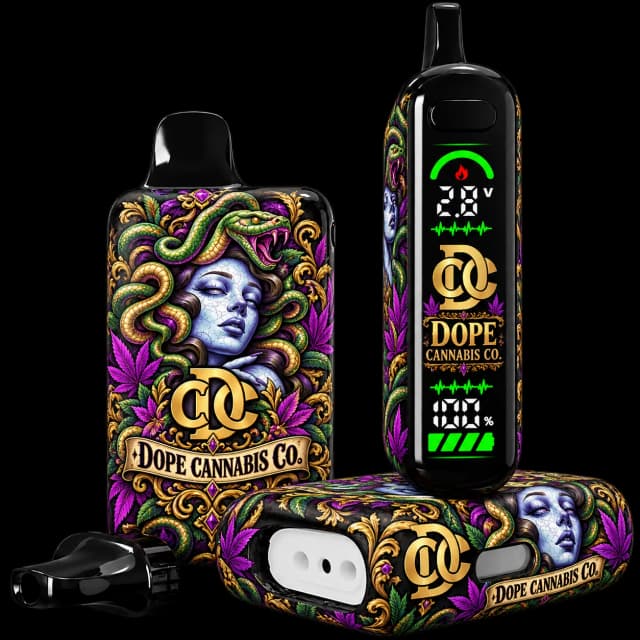

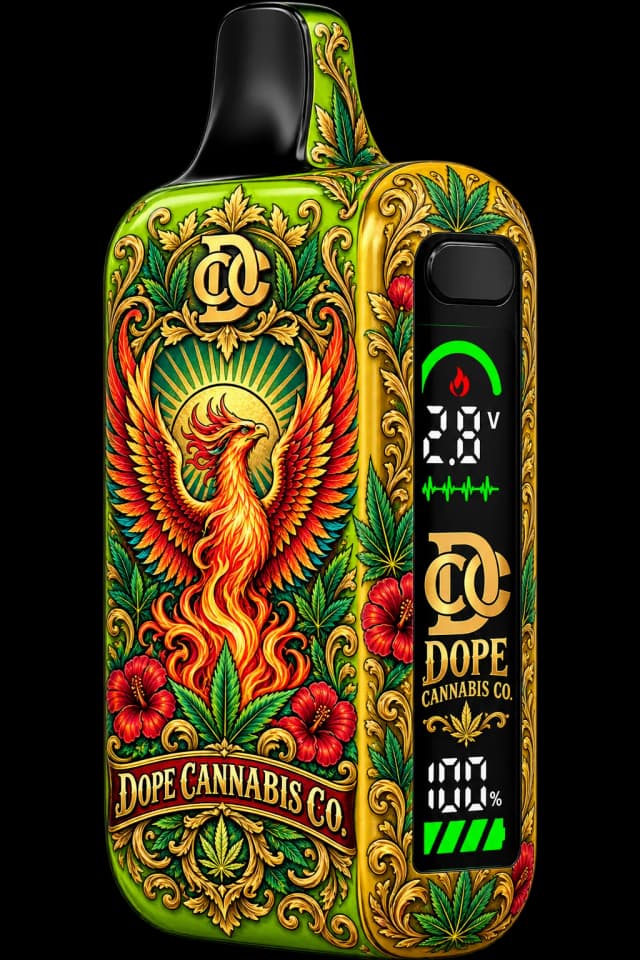

RAVEN is designed as a compact box-style disposable with adjustable power, smart device information, rechargeable functionality, and multiple fill-volume options.
Built-in preheating helps prepare the device for optimal oil flow before use.
2.8V 3.2V 3.6V Additional options available upon request.
Every material selected for chemical compatibility, thermal performance, and long-term reliability with high-viscosity cannabis oils.
Choose from 5mL, 6mL, and 7mL capacity options, all featuring the same compact box-style preheat design.
Complete engineering specifications for the RAVEN box-style preheat disposable vape platform.
| Available Sizes | 5mL / 6mL / 7mL |
|---|---|
| Max. Fill Volume | 5mL / 6mL / 7mL |
| Dimensions | 45 × 20 × 83.6 mm |
If a short circuit occurs or loading limits are exceeded, the screen stays on for approximately five seconds before the device enters a dormant state.
Normal usage time is approximately 10 seconds. When usage exceeds 10 seconds, the white light flashes twice and output stops.
While Charging
Screen light and battery bar remain active

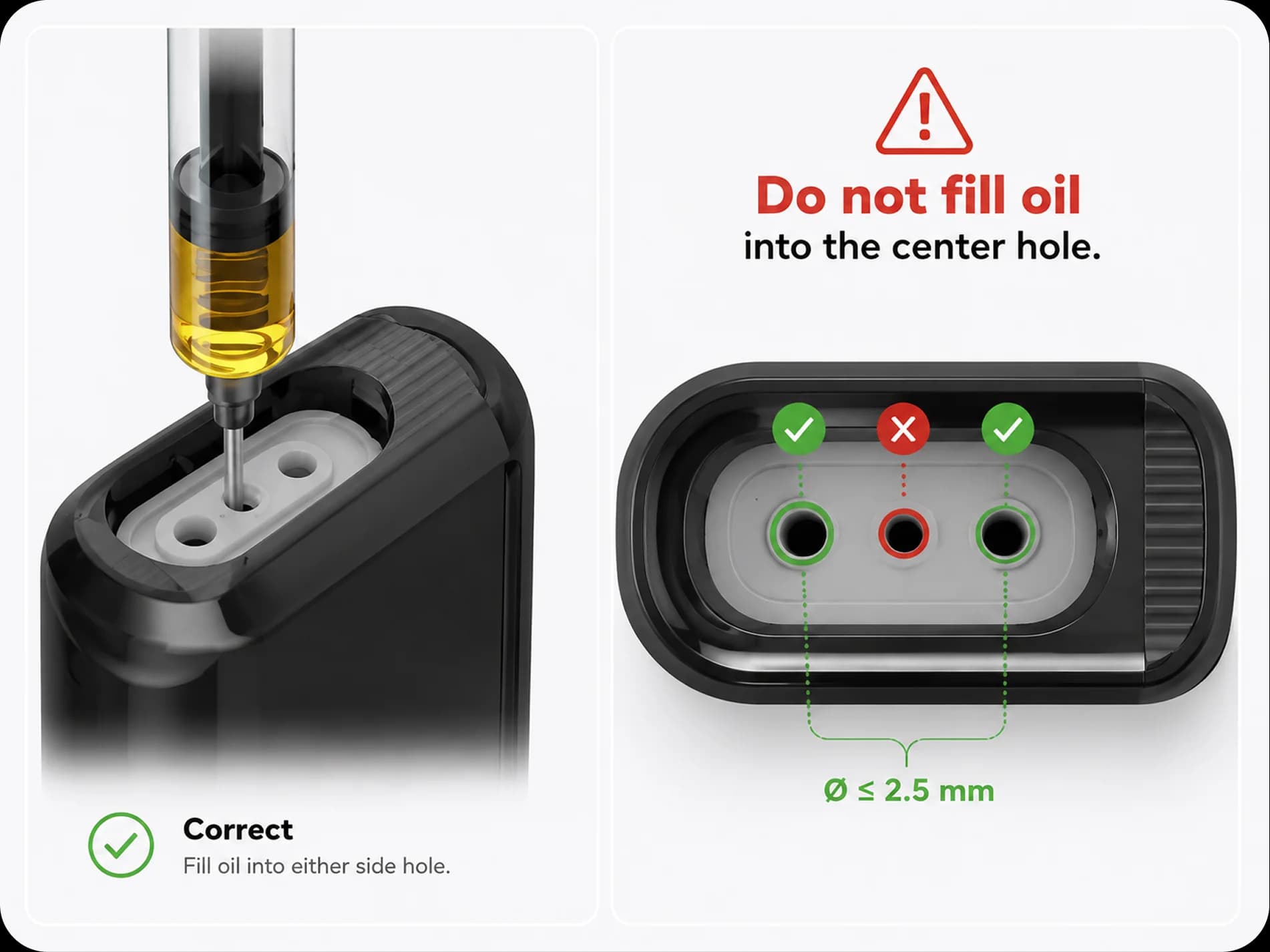

Filling

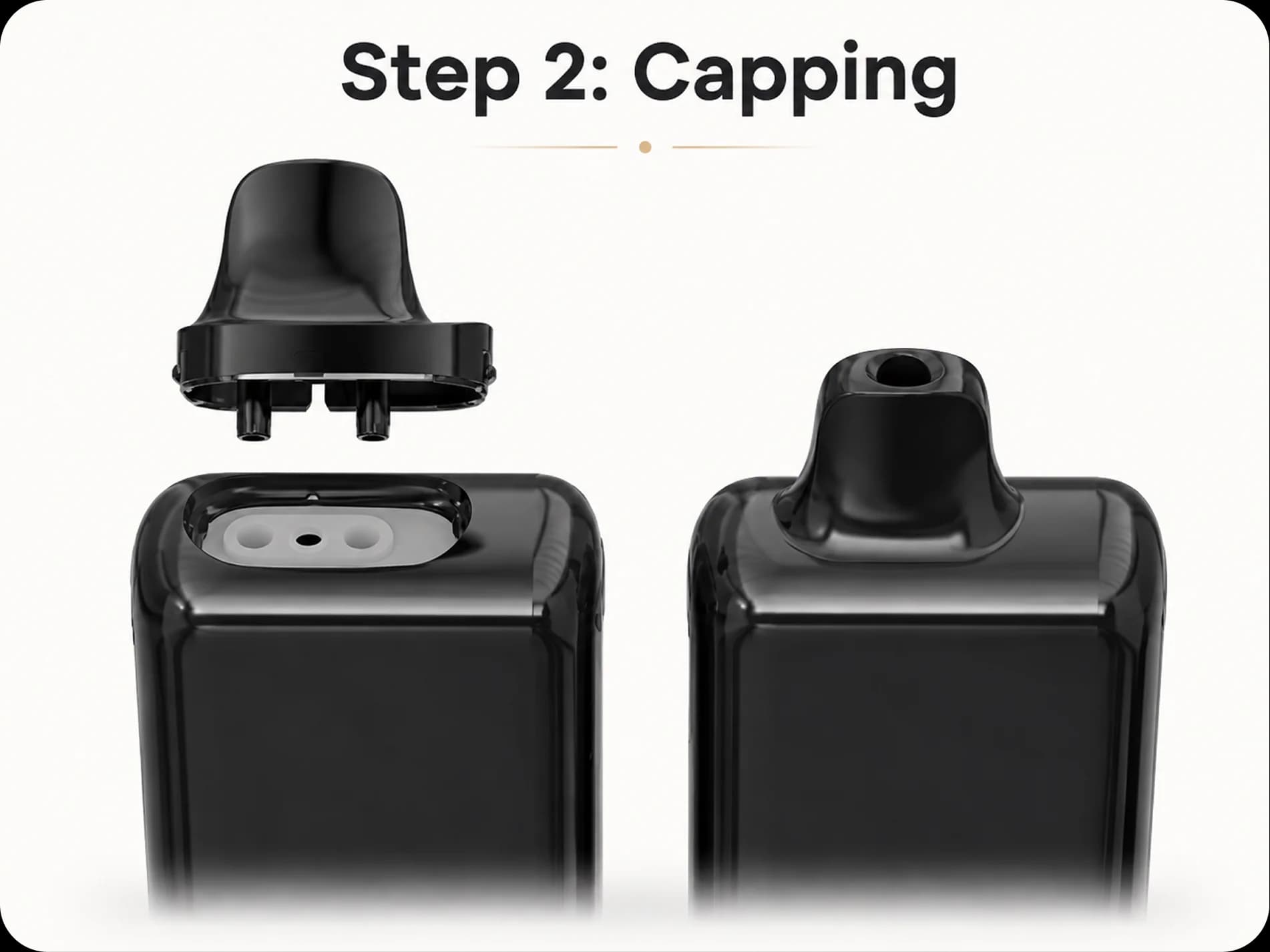

Capping
Silk Printing
MOQ 3,000Extra 2–3 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Rubber Soft Touch
MOQ 10,000Extra 3–4 days
Matte Finish
MOQ 10,000Extra 5–7 days
Glossy Finish
MOQ 10,000Extra 5–7 days
Colored Mouthpieces
18°C – 26°C
40% – 60% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.
RAVEN is available in 5mL, 6mL, and 7mL capacities. All three are box-style preheat disposable configurations.

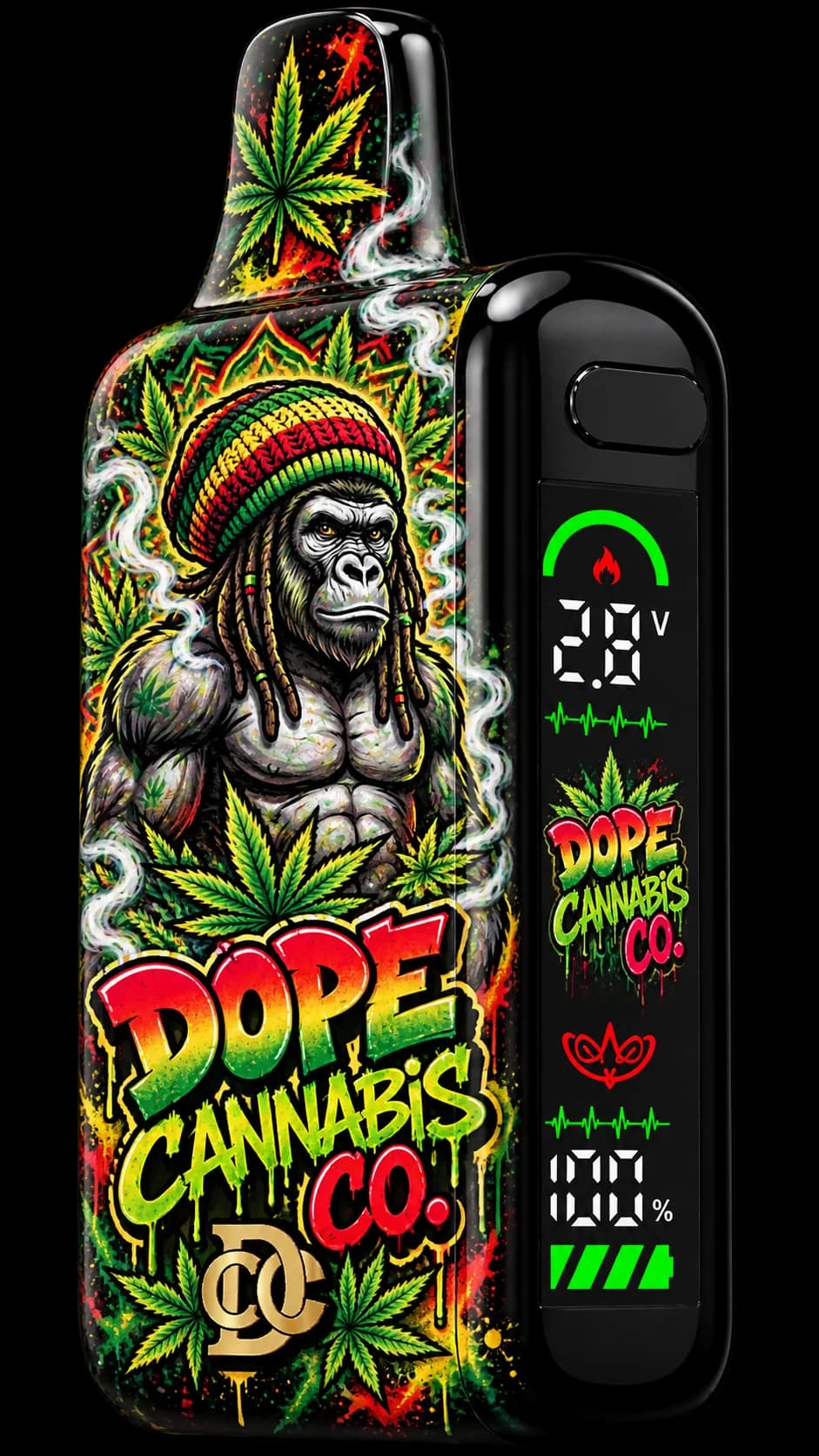

The smart screen shows battery life, voltage, and preheating time. The product sheet also states that a logo can be printed inside the screen.
RAVEN uses a 400mAh rechargeable battery. It is described as powerful, durable, and designed for longer battery life.
The standard resistance is 1.3 ± 0.1Ω. RAVEN uses button activation with three standard voltage settings.
RAVEN should be capped within 2–3 minutes after filling.
Still have questions? Email us at hello@rectitudepartners.com

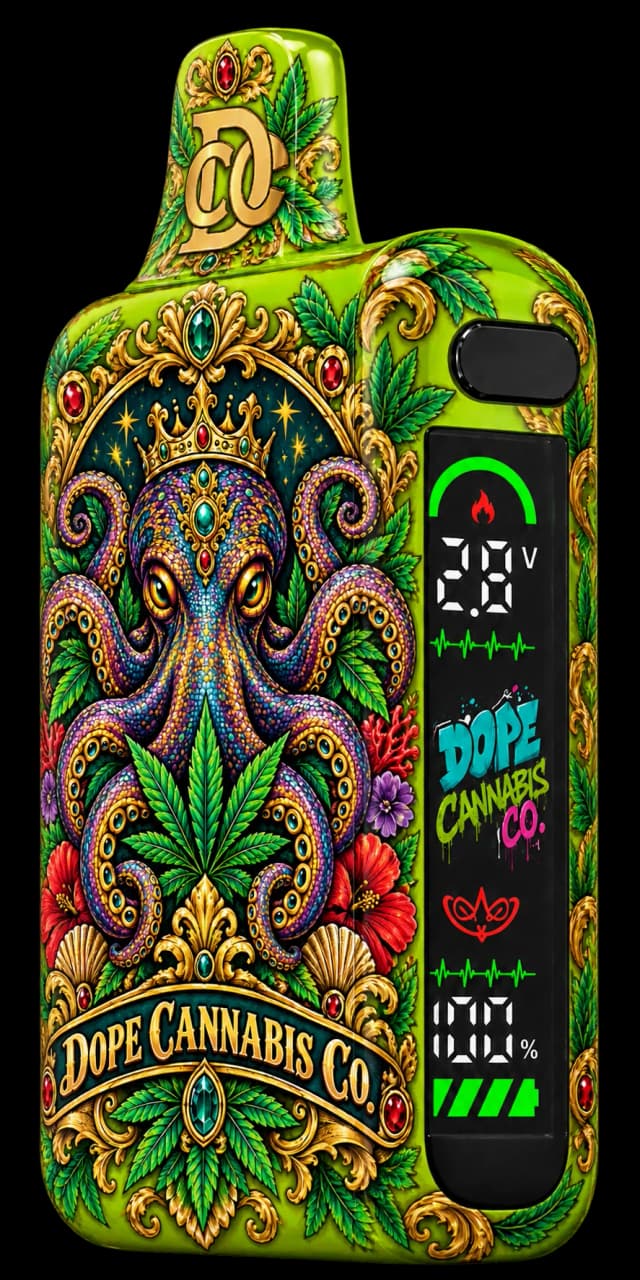

Integrated display shows battery life, voltage, preheating time, and supports logo display inside the screen.
400mAh rechargeable battery via USB Type-C port.
| Standard Power | 2.8V / 3.2V / 3.6V |
|---|
| Resistance | 1.3 ± 0.1 Ω |
|---|
| Activation | Button Activated |
|---|
| Mouthpiece | PCTG |
|---|
| Heating Element | SS316 |
|---|
| Wick | Ceramic |
|---|
| Tank Material | PCTG |
|---|
| Seals | Silicone |
|---|
| Battery Housing | Aluminium Alloy Anode |
|---|
Fully Charged
Green light flashes 10× then turns off
MOQ 10,000Extra 5–7 days
Paper Wraps
MOQ 10,000Extra 5–7 days
Sealed with protective film during storage.
Recharge every 180 days.
