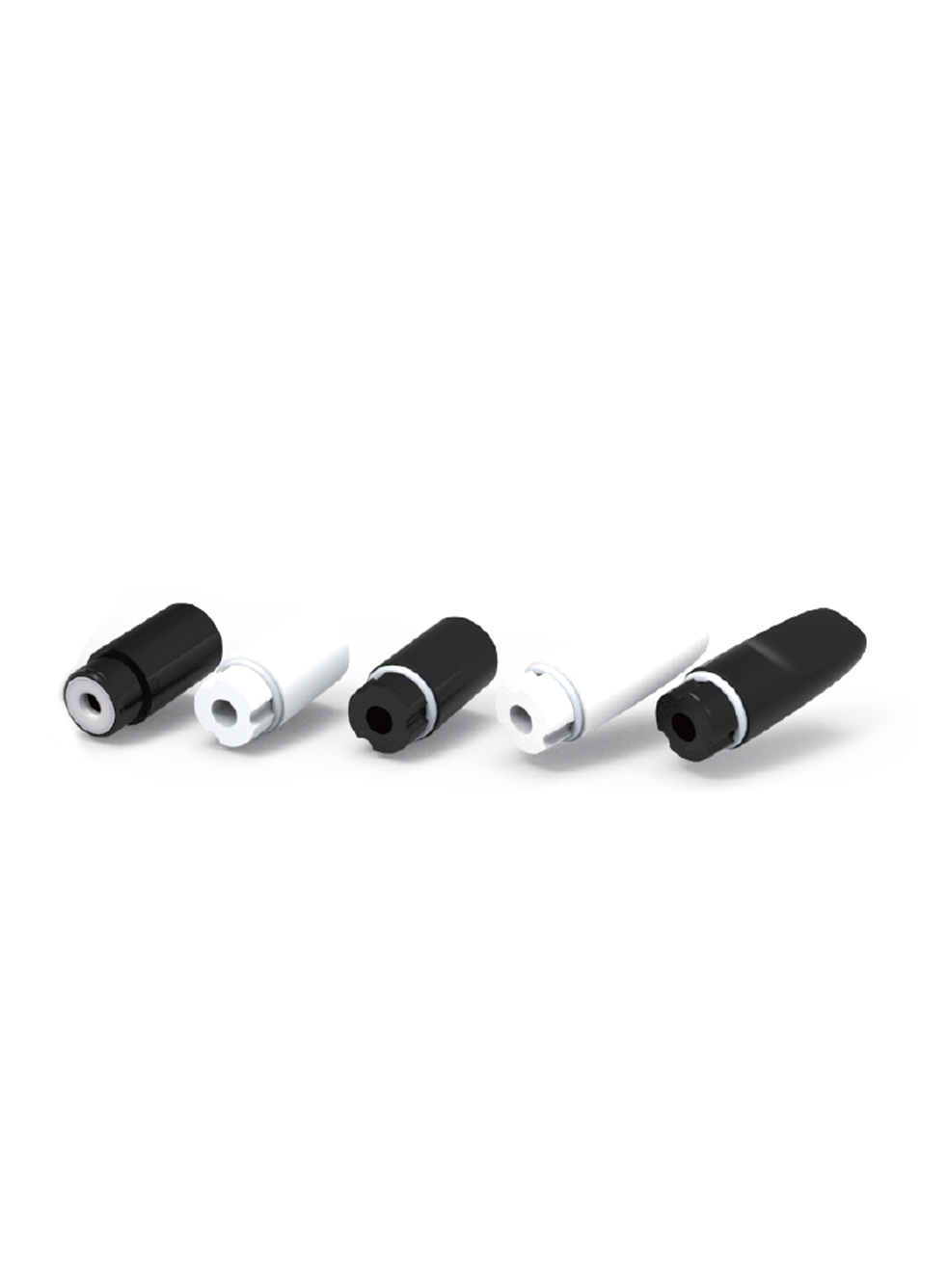

HYDRA Poly Cartridge

0.5ml & 1ml Poly Cartridge

  • Technology atomizer – heating element embedded in porous ceramic
  • Medical Grade 316SS Center Post + Food Grade Polymer Tank
  • Inlet Holes 1.0mm – 2.5mm (customizable)
  • Press Fit Mouthpiece – standard mouthpiece catalogue available
  • 510 connection – M7 treaded connection
  • Operational viscosity ranges from 1000 to 110,000 cps
  • Available in varying powers and fluid inlet sizes to customize vapor feel and taste.

Product Information

Version (size): 0.5 ml, 1 ml

Internal Volume (Gross): 0.55 ml, 1.05 ml

Max. Fill Volume: 0.5 ml, 1 ml

Power @ 35V (0.5W)

Fluideinlet Diameter (+0.5mm): Standard inlet diameter is 2.0mm; 1.0–2.5mm options available upon request

Viscosity Range: 1,000–110,000 cps

Cap method: Press fit

Branding Options: Available with MOQ

Wetted Materials:

Fluid Housing: Glass

Atomizer shell and base: 304 & 316 Stainless steel

Airway Tube: 304 & 316 Stainless steel

Heating Element: Nickel chromium aluminum alloy

Wick: Ceramic

Seals: Silicone
